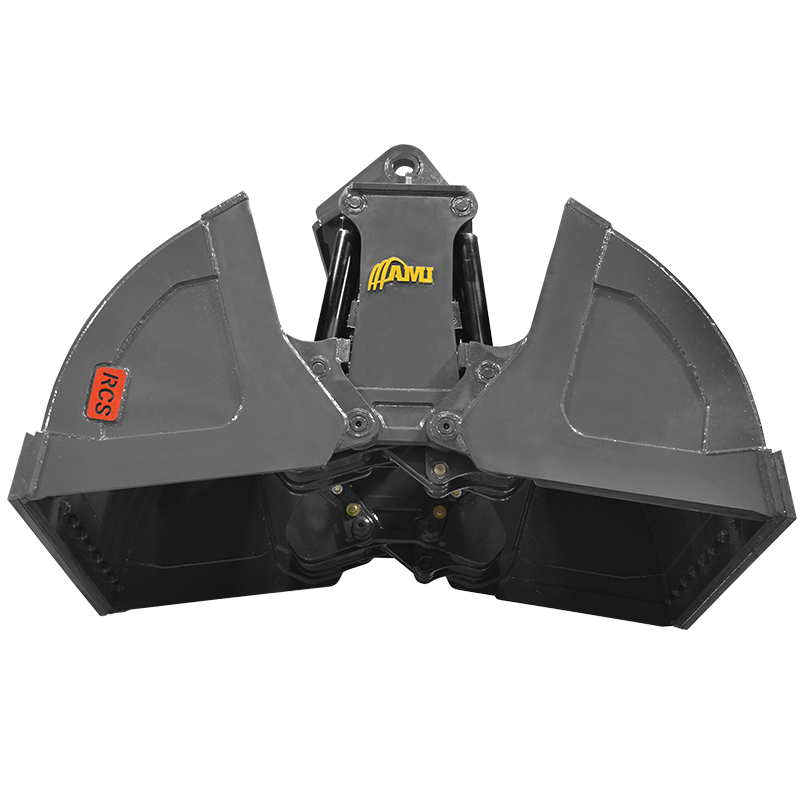

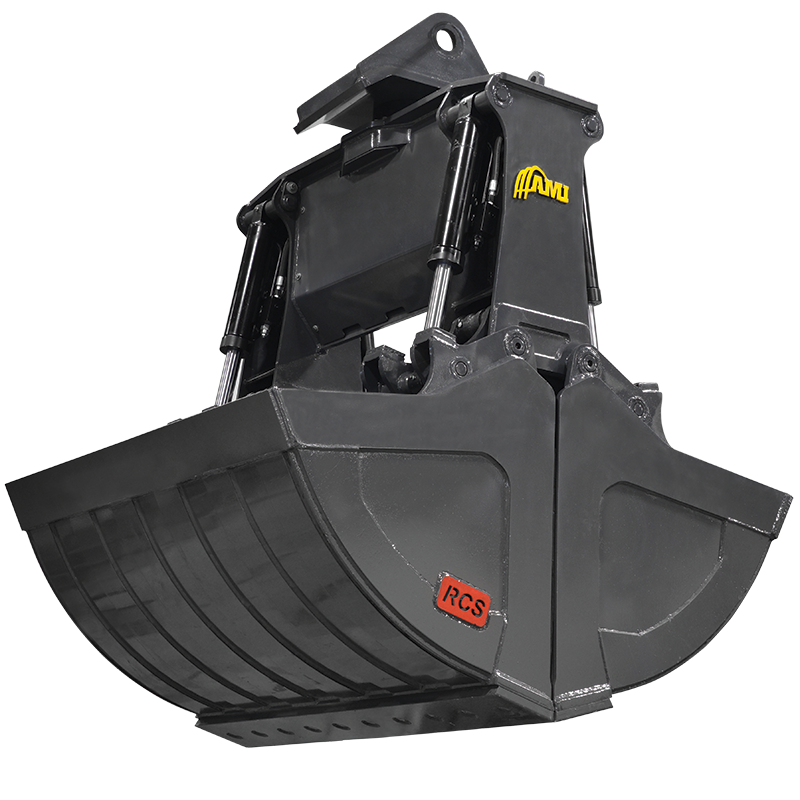

Rotating Clam Shell Bucket

For a tighter grip on productivity, the AMI Rotating Clam Shell Bucket is the ideal tool for moving soft earth, sand, gravel, and mud, as well as agricultural and industrial materials. The four-cylinder design works by applying equal force on each corner of the bucket, allowing it to open and close in synchronous motion. Because of its ability to load and unload vertically, the Rotating Clam Shell works extremely well in confined work zones. The timed jaws feature load-holding valves installed directly on the cylinders while the high-torque rotator delivers 360 degree continuous rotation for additional versatility. Built with Strenx performance steel, the Rotating Clam Shell Bucket also features a reversible bolt-on cutting edge and is available in a variety of sizes.

Specifications - Excavator

FastTrack Category Model Machine Class Width Capacity Weight Teeth
130 CSB2433RD100 24,000 - 33,000 lbs 54 " 1.000 yd³ WOR 0
150 CSB3340RD150 33,000 - 45,000 lbs 60 " 1.500 yd³ WOR 0
200 CSB4045RD200 45,000 - 55,000 lbs 60 " 2.000 yd³ 4400 lbs 0
200 CSB4045RD250 45,000 - 55,000 lbs 60 " 2.500 yd³ 4600 lbs 0
250 CSB4560RD250 55,000 - 65,000 lbs 66 " 2.500 yd³ WOR 0
250 CSB4560RD300 55,000 - 65,000 lbs 66 " 3.000 yd³ WOR 0
300 CSB6080RD300 65,000 - 90,000 lbs 72 " 3.000 yd³ WOR 0
300 CSB6080RD350 65,000 - 90,000 lbs 72 " 3.500 yd³ WOR 0
400 CSB80100RD400 90,000 - 115,000 lbs - 4 yd³ WOR 0
400 CSB80100RD450 90,000 - 115,000 lbs - 4.500 yd³ WOR 0

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
