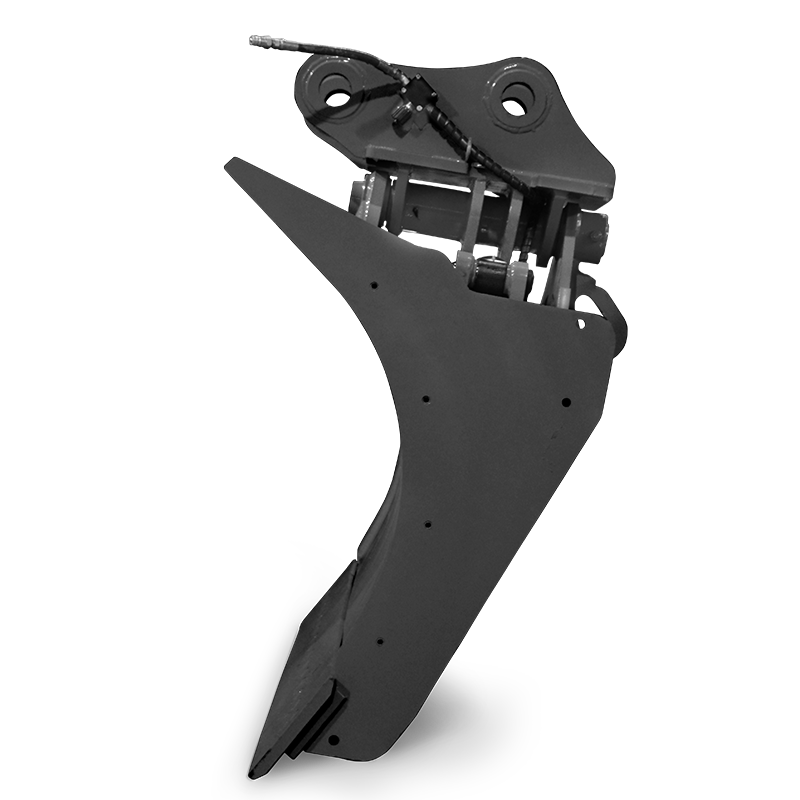

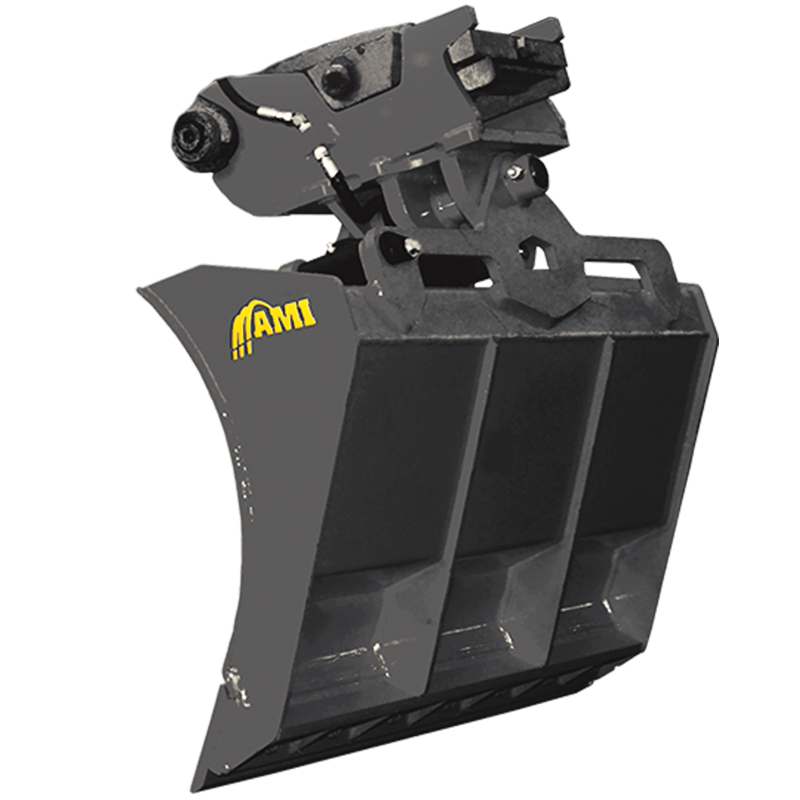

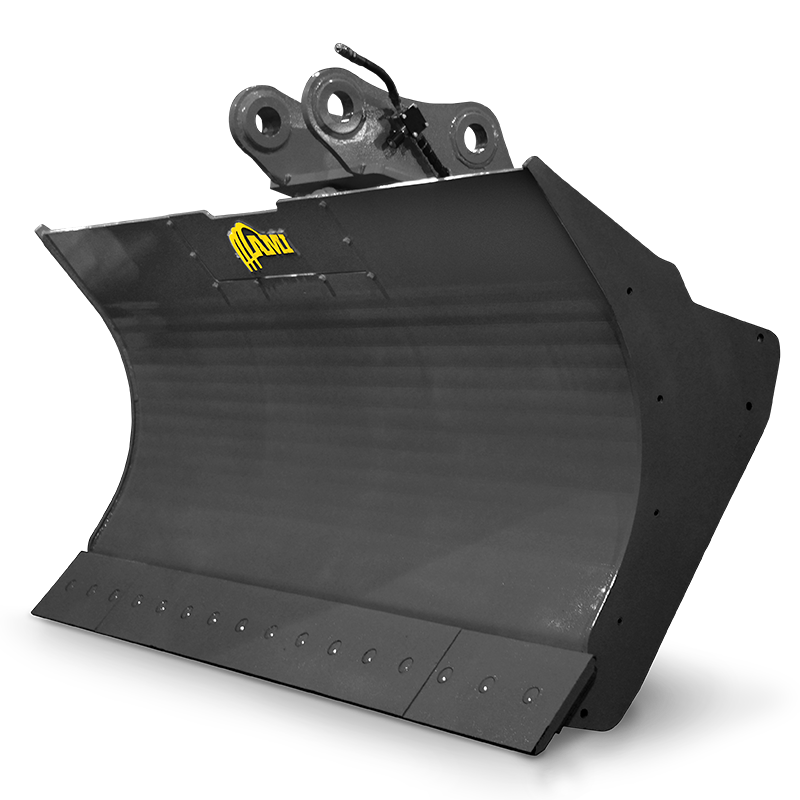

Chuck Blade

For wet, sticky soil that wants to pack tight rather than dump clean, the AMI Chuck Blade is the tool that keeps you productive. The wide edge and side wall design easily handles clumping soil and empties instantly. The tilting feature also gives you 90 degree precision grading on steep slopes.

Specifications - Excavator

FastTrack Category Model Machine Class Description Width Height Weight
130 CB2433E60 24,000 - 33,000 lbs No Tilt 60 " 30 " 1230 lbs
130 HTCB2433E6030 24,000 - 33,000 lbs Hydraulic Tilt 60 " 30 " 1430 lbs
150 CB3340E72 33,000 - 45,000 lbs No Tilt 72 " 40 " 2425 lbs
150 HTCB3340E72 33,000 - 45,000 lbs Hydraulic Tilt 72 " 40 " 2625 lbs
200 CB4045E84 45,000 - 55,000 lbs No Tilt 84 " 40 " 2970 lbs
200 HTCB4045E84 45,000 - 55,000 lbs Hydraulic Tilt 84 " 40 " 3170 lbs
250 CB4560E84 55,000 - 65,000 lbs No Tilt 84 " 50 " 4045 lbs
250 HTCB4560E84 55,000 - 65,000 lbs Hydraulic Tilt 84 " 50 " 4245 lbs
300 CB6080E84 65,000 - 90,000 lbs No Tilt 84 " 50 " WOR
300 HTCB6080E84 65,000 - 90,000 lbs Hydraulic Tilt 84 " 50 " WOR
400 CB80100E120 90,000 - 115,000 lbs No Tilt 120 " 60 " 5920 lbs
400 HTCB80100E120 90,000 - 115,000 lbs Hydraulic Tilt 120 " 60 " 6815 lbs
650 CB120140E120 120,000 - 140,000 lbs. No Tilt 120 " 66 " WOR
750 CB140160E120 140,000 - 160,000 lbs. No Tilt 120 " 72 " WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
