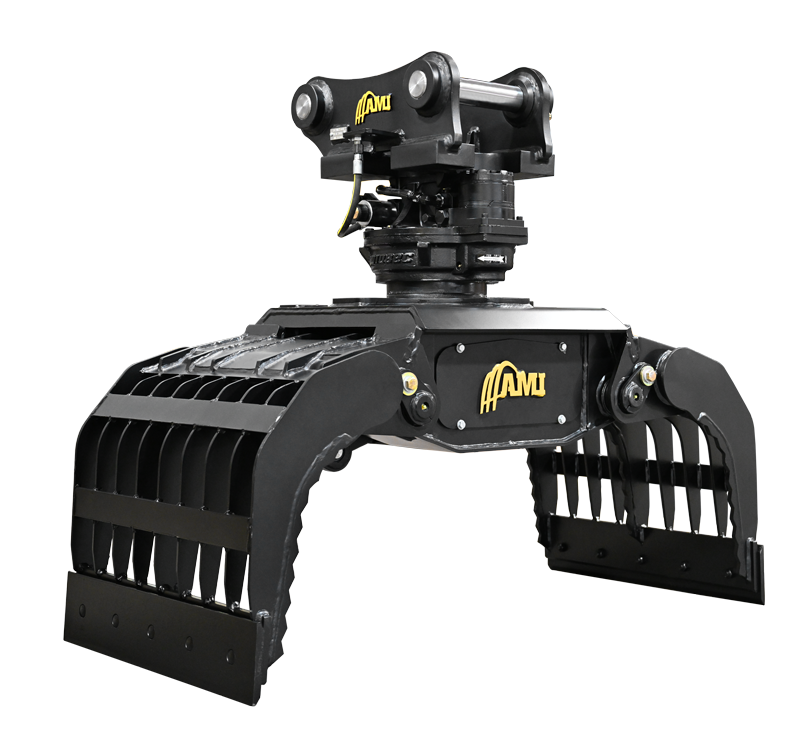

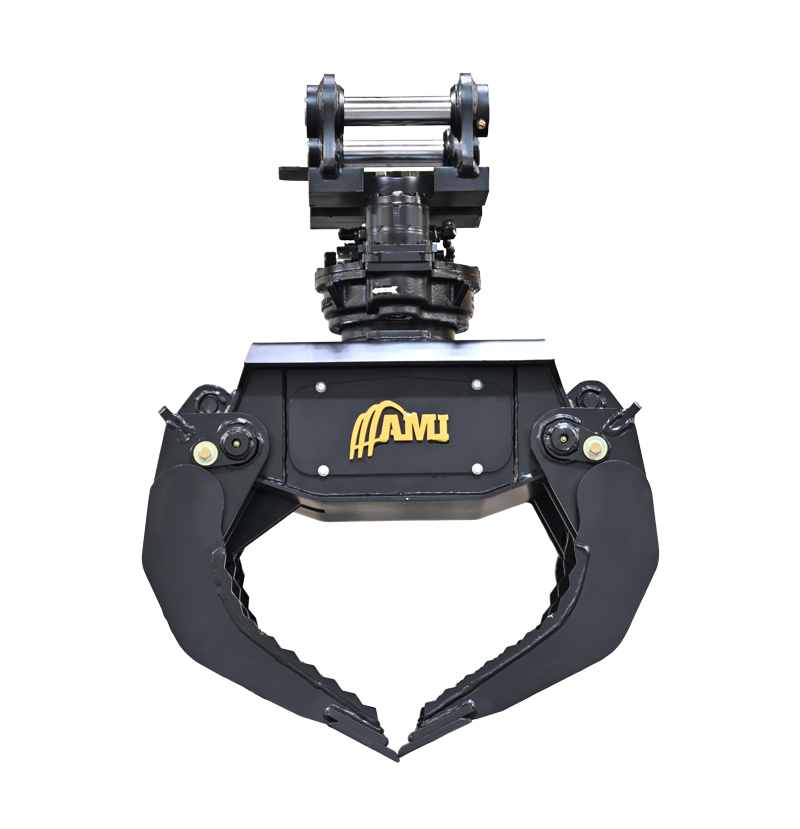

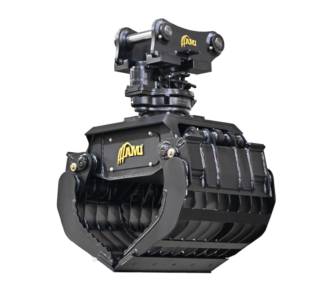

Severe Duty Rotating Demolition & Sorting Grapple

High performance strength meets cutting-edge agility with AMI Attachments’ Extractor - the versatile demolition and sorting grapple capable of taking down buildings, moving large volumes of material, and picking through fine recyclables. Built for strenuous work, the Extractor - Severe Duty is made with Hardox Wear Plates and Strenx steel and moves higher volumes of material using less fuel - cycle after cycle. The Extractor rotates 360 degrees and features flexible jaw operation with edge-to-edge contact, reversible cutting edges, and zero clearance design for maximum productivity.

Product Features


Edge-to-Edge Contact

The Extractor’s precision edge-to-edge contact makes selecting thin and valuable items incredibly easy.


360° Rotation

For exceptional performance and total operator control, the Extractor rotates 360 degrees to position the grapple accurately and move loads quickly.


Hardox Wear Plate

High-wear serrated edges and mounting edges are made with Hardox Wear Plate, an abrasion-resistant steel that can repeatedly withstand the Extractor’s rigorous work.


Vertical Tines

With the Extractor’s zero clearance jaw design, operators can easily retrieve objects tightly positioned against walls and bins with its perfectly vertical jaw opening.

Specifications - Excavator

FastTrack Category Model Machine Class Description
130 GR2433SGJSD 24,000 - 33,000 lbs 32'' Jaw Width 72'' Jaw Open C/W Reversible Bolt-On Edge
150 GR3340SGJSD 33,000 - 45,000 lbs 32'' Jaw Width 72'' Jaw Open C/W Reversible Bolt-On Edge
200 GR4045SGJSD 45,000 - 55,000 lbs 36'' Jaw Width 80'' Jaw Open C/W Reversible Bolt-On Edge
250 GR4560SGJSD 55,000 - 65,000 lbs 41.5'' Jaw Width 88'' Jaw Open C/W Reversible Bolt-On Edge
300 GR6080SGJSD 65,000 - 90,000 lbs 60'' Jaw Width 94'' Jaw Open C/W Reversible Bolt-On Edge
400 GR80100SGJSD 90,000 - 115,000 lbs 60'' Jaw Width 94'' Jaw Open C/W Reversible Bolt-On Edge

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
