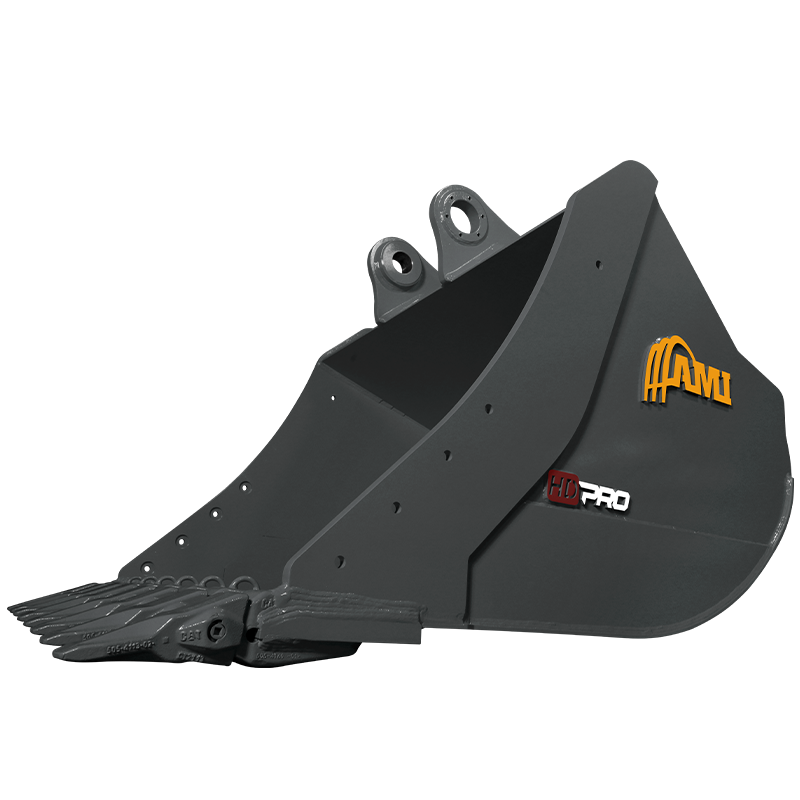

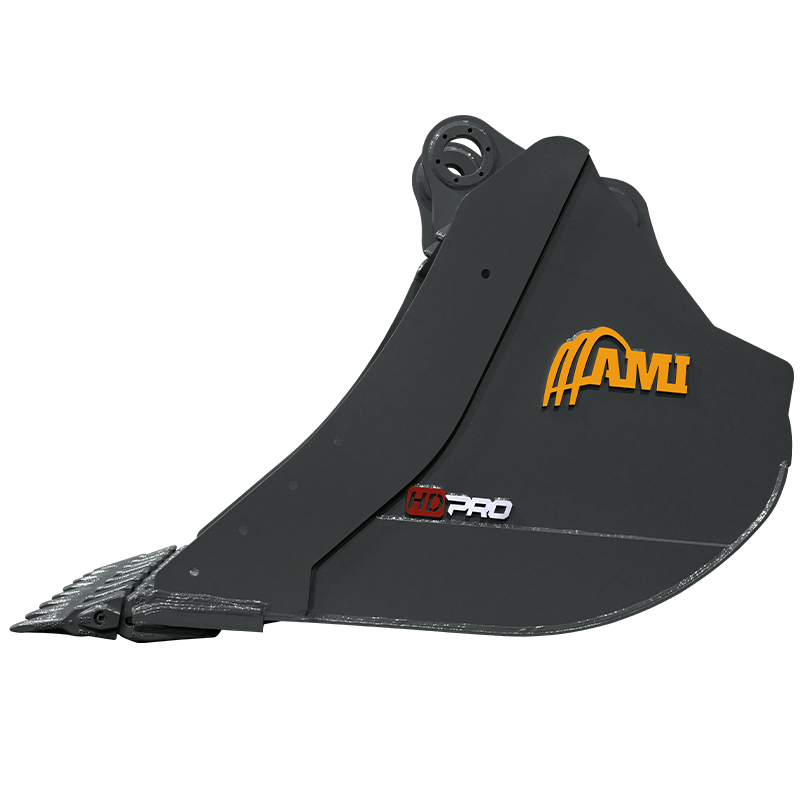

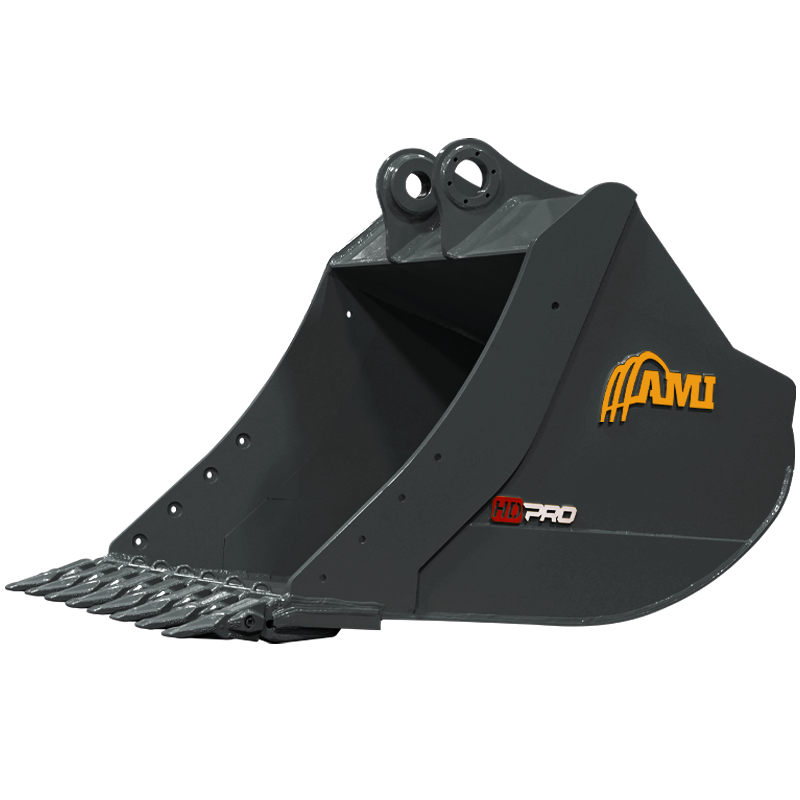

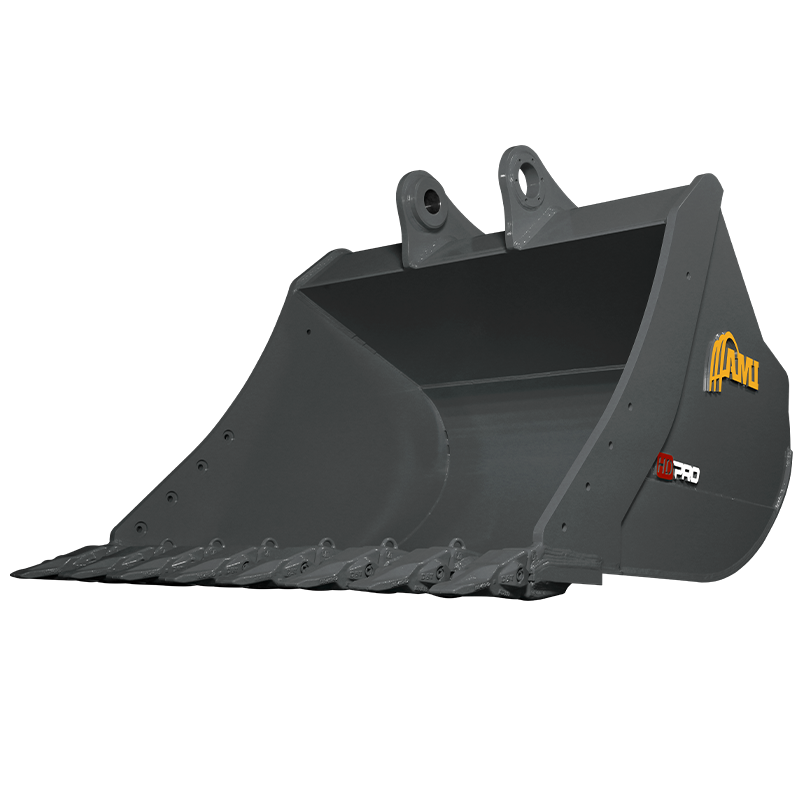

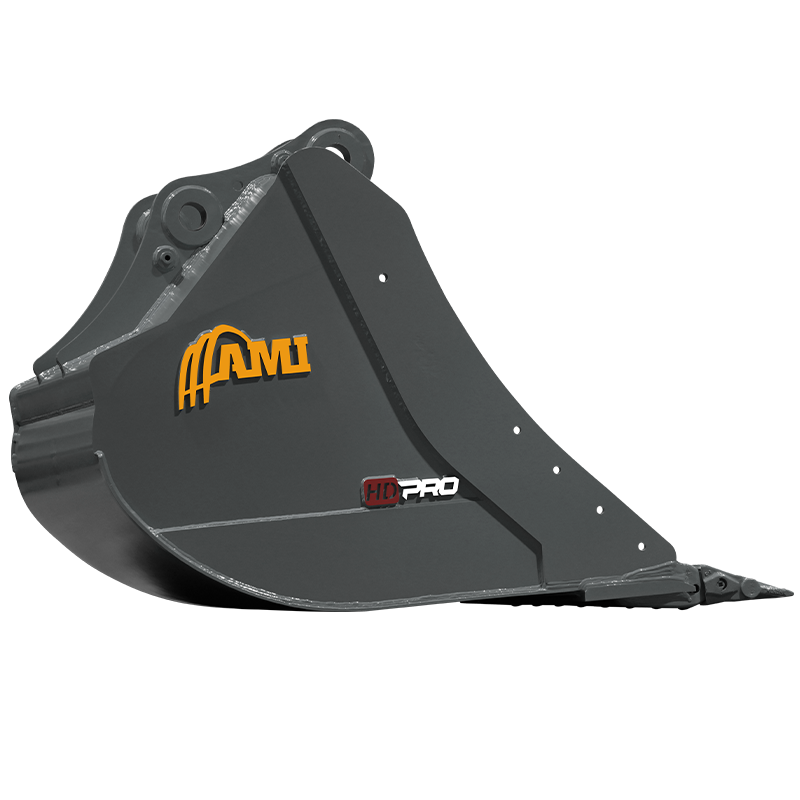

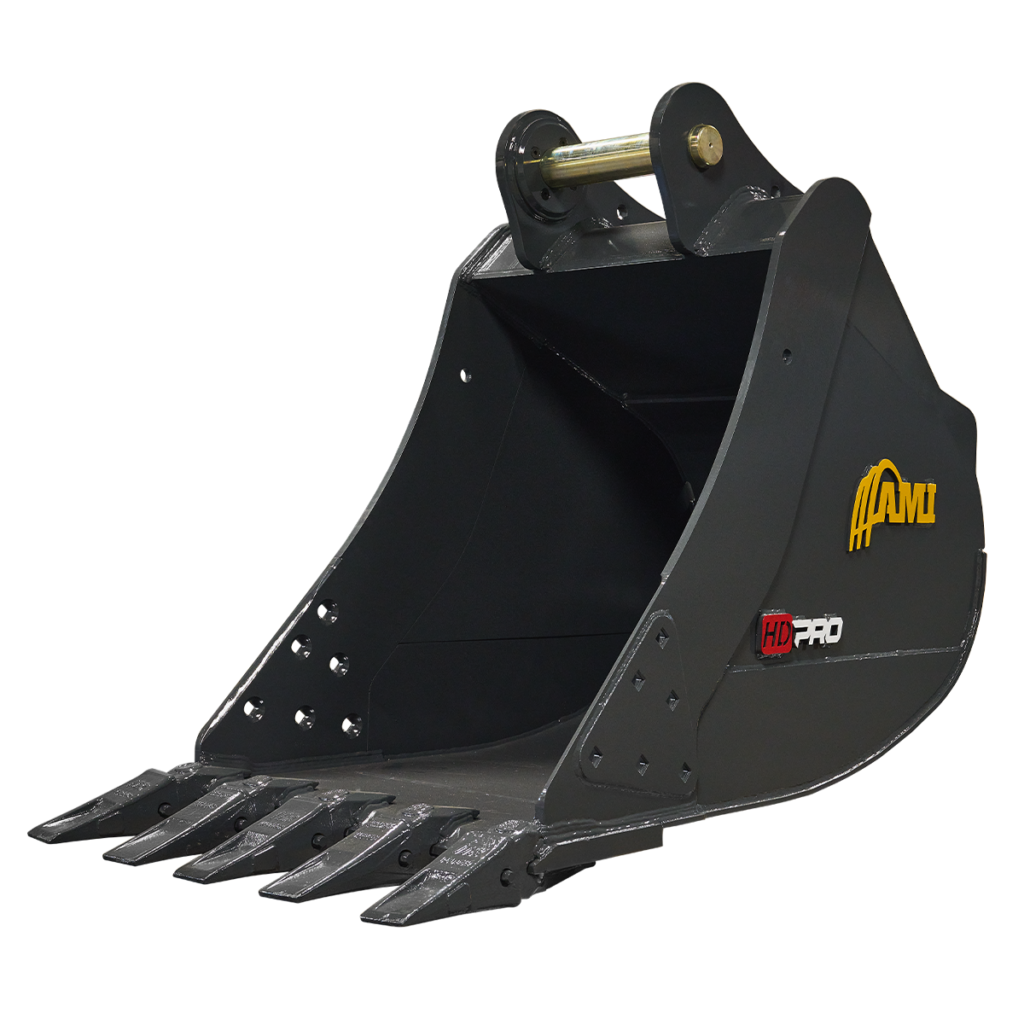

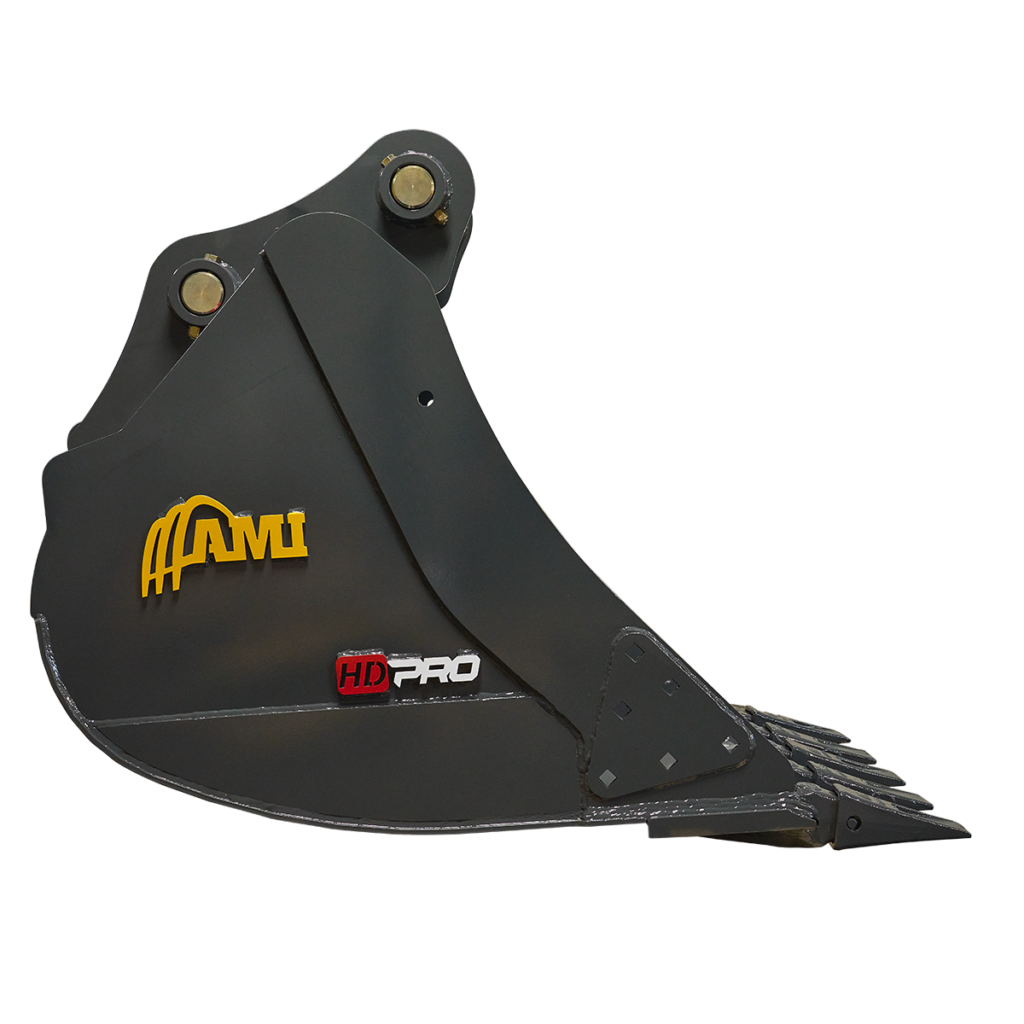

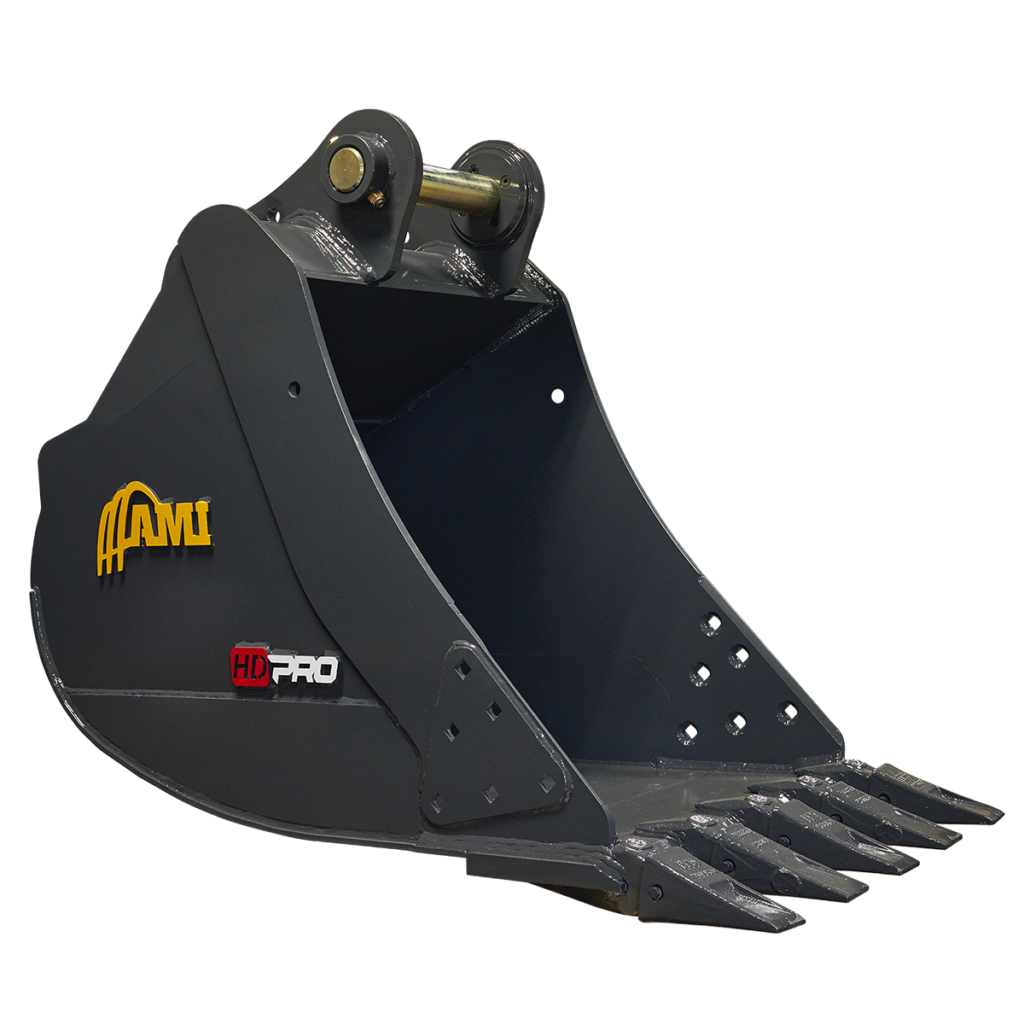

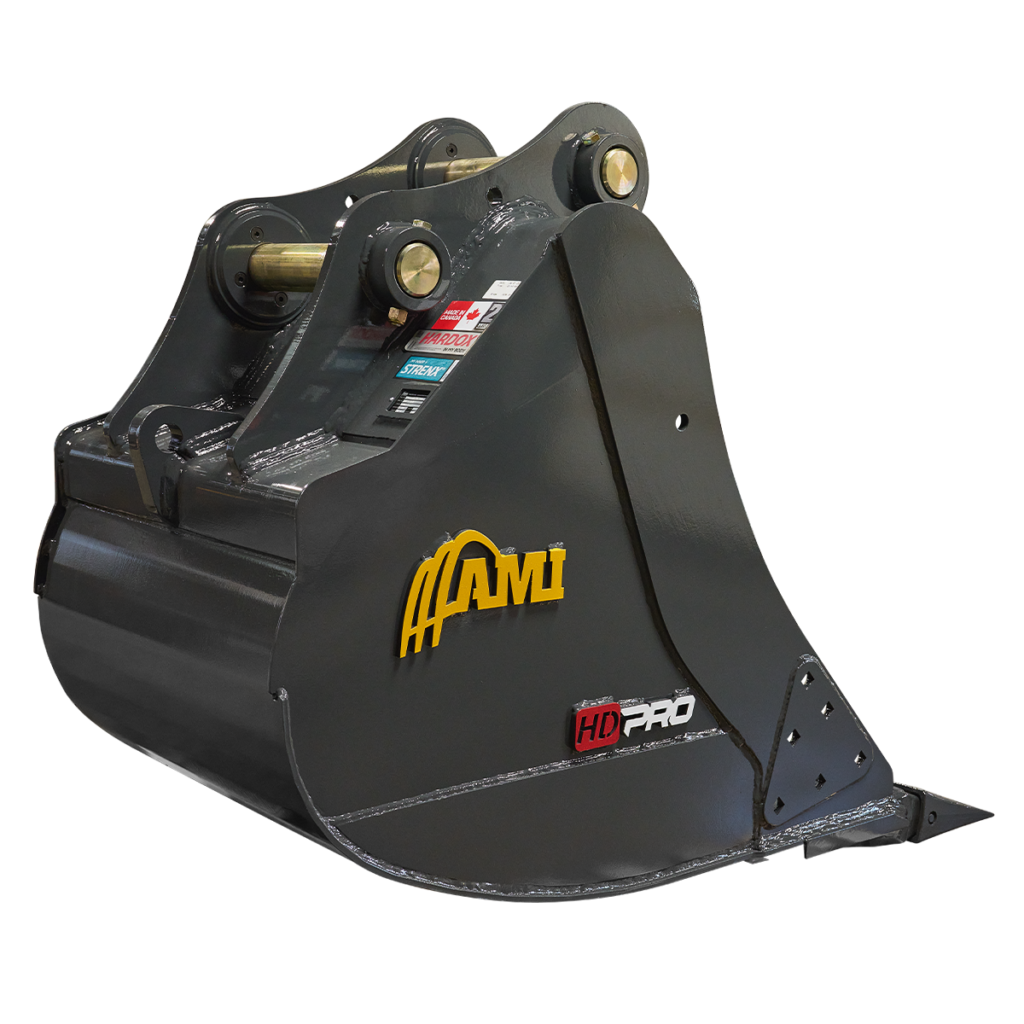

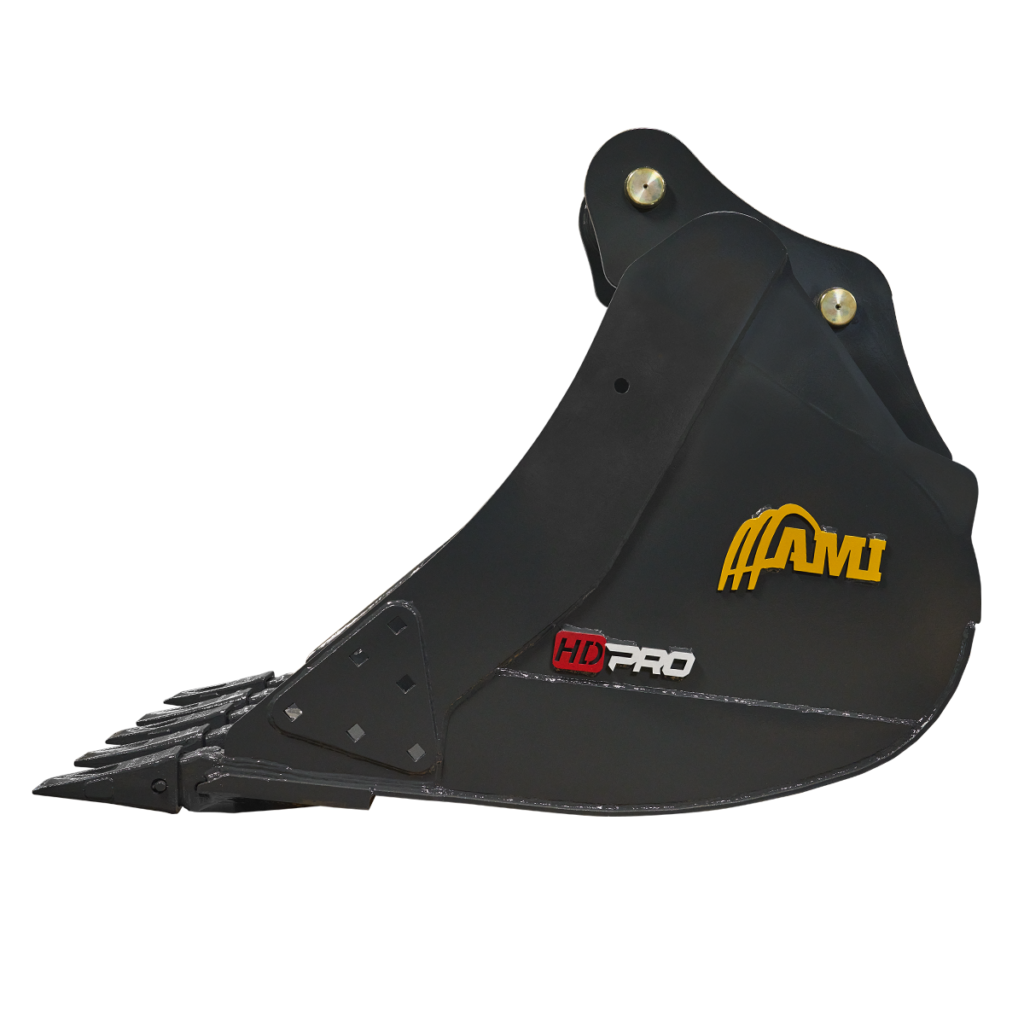

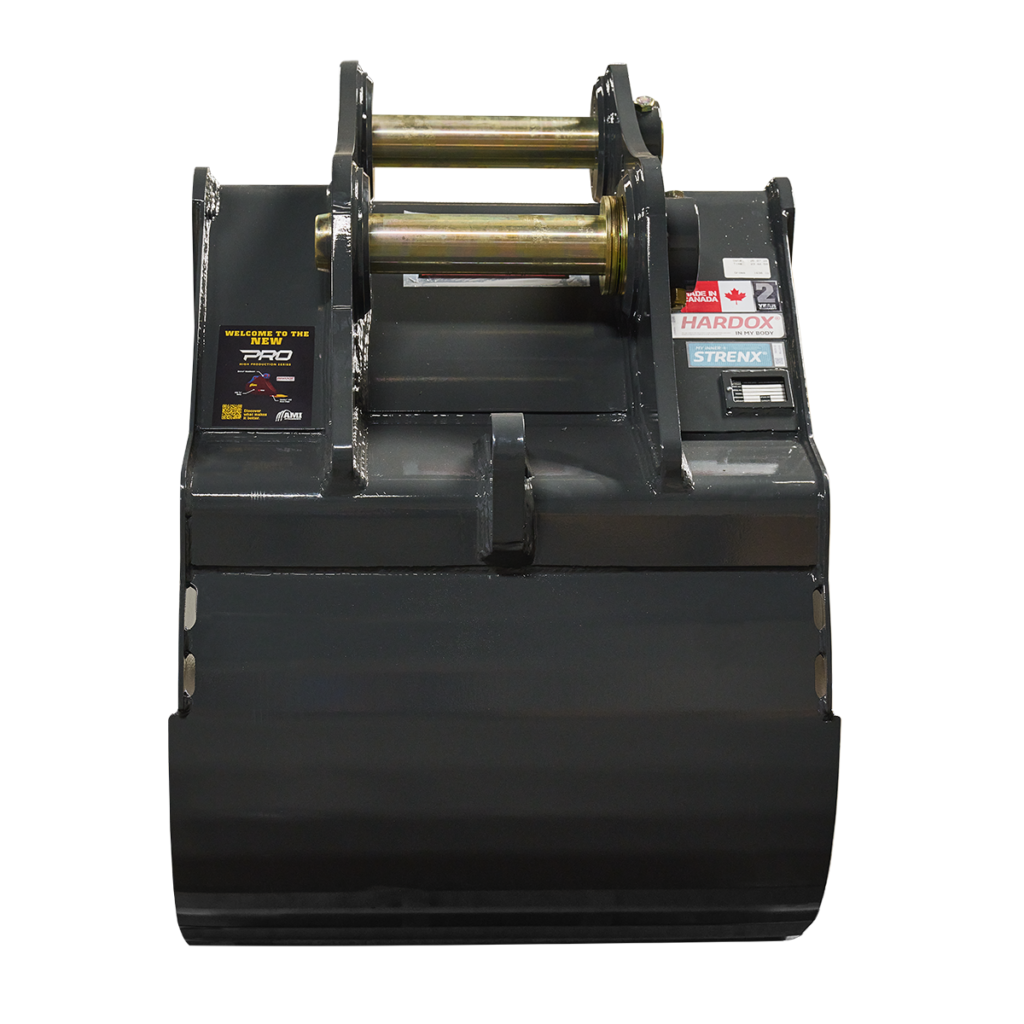

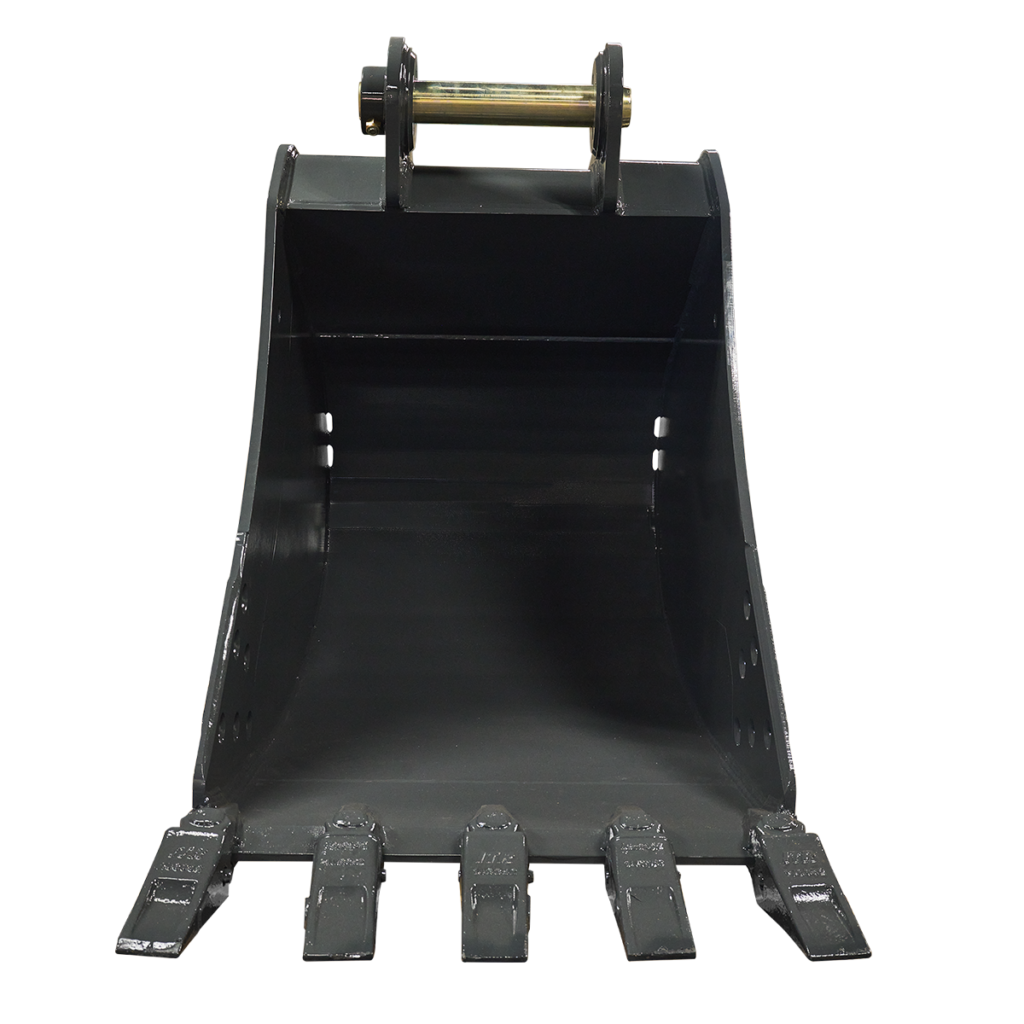

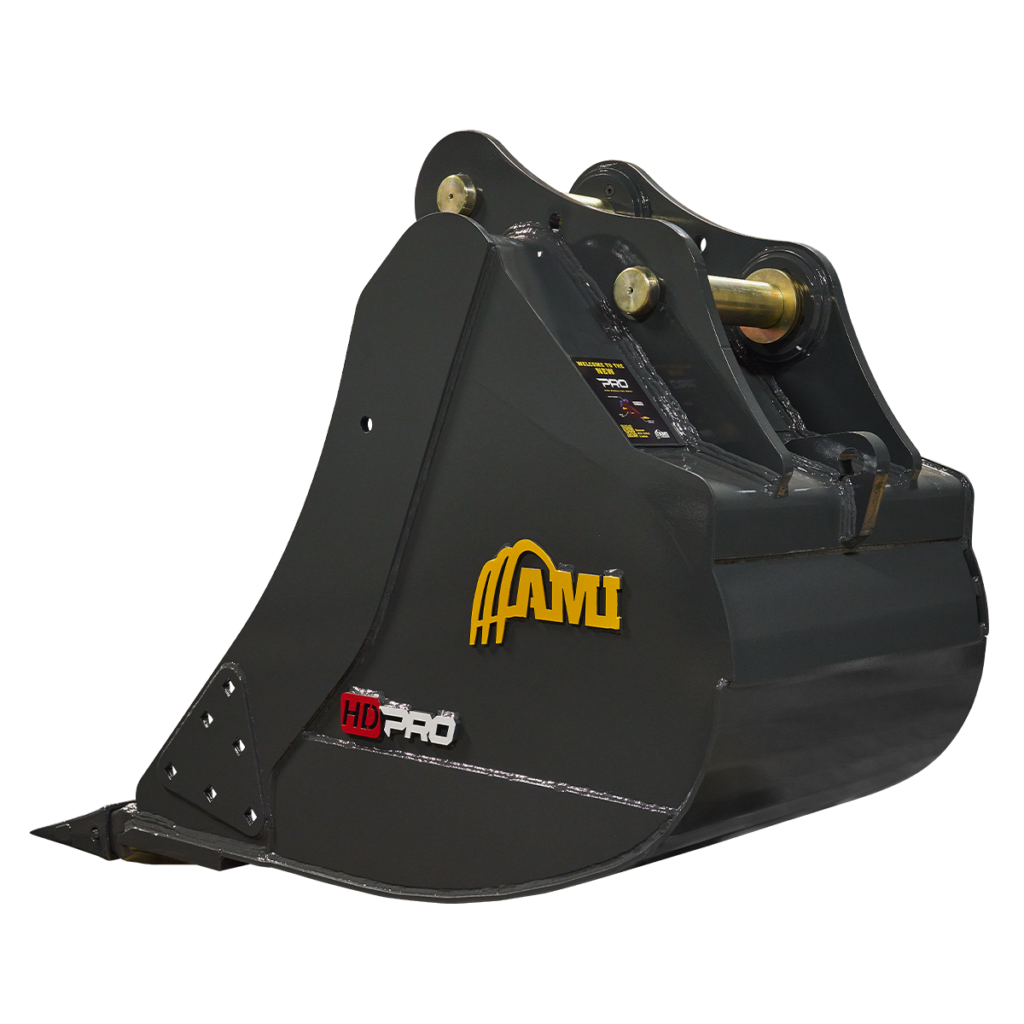

HD Pro Digging Bucket

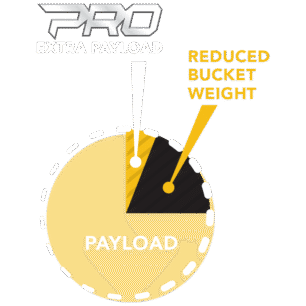

Next Generation Productivity that Cycles Faster and Maximizes Payload. Welcome to a whole new level of digging bucket that delivers greater payload performance without sacrificing wear life or impact resistance. AMI PRO Series buckets are strong, last just as long and weigh less - gaining extra payload capacity without upsizing your excavator. Step into the next generation of productivity with an advantage that adds up on every pass. Contact your local AMI Attachments dealer or call 1-800-556-9452.

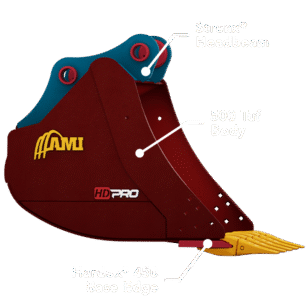

Hardox® In My Body
Lighter-weight Hardox® 500 Tuf steel delivers proven durability, allowing more material to be moved without increasing suspended load.

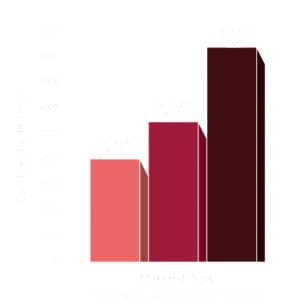

Material Type
Smooth Outer Shell
By eliminating the need for heavy wear bars, PRO Series buckets are lighter weight and reduce drag for efficient breakout of material.

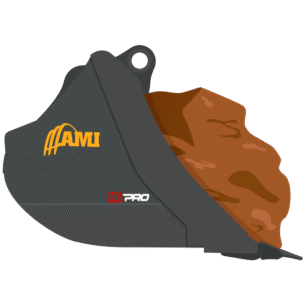

Full Pull
With a forward edge position, PRO Series buckets penetrate material naturally with less bucket curl required. PRO offers better visibility to the operator and fills faster by pulling through material easier.

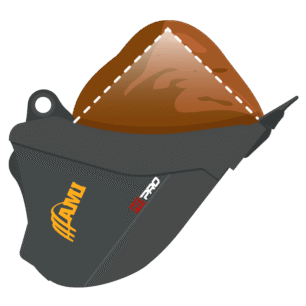

Improved Fill Factor

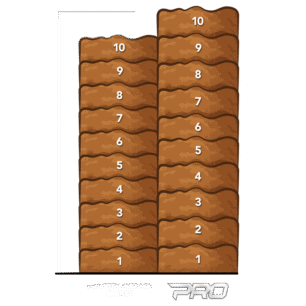

PRO’s profile is capable of holding over 100% fill factor, depending on material.

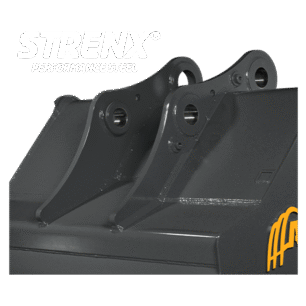

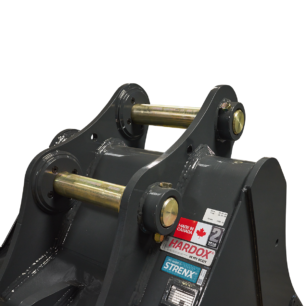

Lugging Made with Strenx®
Stress and strain across the lugging is handled through high tensile Strenx® performance steel that flexes without cracking.

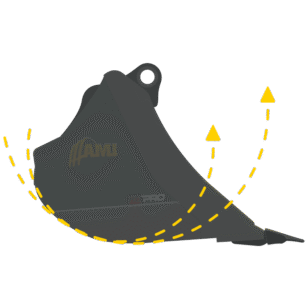

Speed Load Dual Radius
The dual radius shell in combination with the forward edge position allows the bucket to fill quicker, increasing dig cycle times and reducing partial bucket loads. When curling the bucket the dual radius improves heel clearance saving unnecessary exterior wear.
Low Resistance Tapered Sidewalls
The tapered design improves side wall clearance for less digging resistance and reduced side wear, reducing friction at discharge.
Bucket Selection Guide By Material Application
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 130 | HDP2433E18 | 24,000 - 33,000 lbs | 18 " | 0 yd³ | 3 | WOR | |
|
130 | HDP2433E24 | 24,000 - 33,000 lbs | 24 " | 0.5 yd³ | 4 | 752 lbs |
|
|
130 | HDP2433E30 | 24,000 - 33,000 lbs | 30 " | 0.67 yd³ | 4 | 840 lbs |
|
|
130 | HDP2433E36 | 24,000 - 33,000 lbs | 36 " | 0.82 yd³ | 5 | 940 lbs |
|
|
130 | HDP2433E42 | 24,000 - 33,000 lbs | 42 " | 0.98 yd³ | 5 | 1027 lbs |
| 130 | HDP2433E48 | 24,000 - 33,000 lbs | 48 " | 1.15 yd³ | 6 | 1130 lbs | |
|
|
150 | HDP3340E24 | 33,000 - 45,000 lbs | 24 " | 0.57 yd³ | 4 | 865 lbs |
|
|
150 | HDP3340E30 | 33,000 - 45,000 lbs | 30 " | 0.75 yd³ | 4 | 953 lbs |
|
|
150 | HDP3340E36 | 33,000 - 45,000 lbs | 36 " | 0.95 yd³ | 5 | 1059 lbs |
|
|
150 | HDP3340E42 | 33,000 - 45,000 lbs | 42 " | 1.15 yd³ | 5 | 1148 lbs |
| 150 | HDP3340E48 | 33,000 - 45,000 lbs | 48 " | 1.35 yd³ | 6 | 1254 lbs | |
|
|
200 | HDP4045E24 | 45,000 - 55,000 lbs | 24 " | 0.65 yd³ | 3 | 1140 lbs |
|
|
200 | HDP4045E30 | 45,000 - 55,000 lbs | 30 " | 0.87 yd³ | 4 | 1295 lbs |
|
|
200 | HDP4045E36 | 45,000 - 55,000 lbs | 36 " | 1.09 yd³ | 5 | 1457 lbs |
|
|
200 | HDP4045E42 | 45,000 - 55,000 lbs | 42 " | 1.32 yd³ | 5 | 1580 lbs |
|
|
200 | HDP4045E48 | 45,000 - 55,000 lbs | 48 " | 1.56 yd³ | 6 | 1741 lbs |
| 200 | HDP4045E54 | 45,000 - 55,000 lbs | 54 " | 1.8 yd³ | 6 | 1863 lbs | |
| 250 | HDP4560E30 | 55,000 - 65,000 lbs | 30 " | 0.98 yd³ | 4 | 1583 lbs | |
|
|
250 | HDP4560E36 | 55,000 - 65,000 lbs | 36 " | 1.24 yd³ | 5 | 1750 lbs |
|
|
250 | HDP4560E42 | 55,000 - 65,000 lbs | 42 " | 1.51 yd³ | 5 | 1894 lbs |
|
|
250 | HDP4560E48 | 55,000 - 65,000 lbs | 48 " | 1.78 yd³ | 6 | 2061 lbs |
|
|
250 | HDP4560E54 | 55,000 - 65,000 lbs | 54 " | 2.06 yd³ | 6 | 2203 lbs |
| 250 | HDP4560E60 | 55,000 - 65,000 lbs | 60 " | 2.34 yd³ | 7 | 2371 lbs | |
| 300 | HDP6080E30 | 65,000 - 90,000 lbs | 30 " | 1.21 yd³ | 3 | 2445 lbs | |
| 300 | HDP6080E36 | 65,000 - 90,000 lbs | 36 " | 1.54 yd³ | 4 | 2700 lbs | |
| 300 | HDP6080E42 | 65,000 - 90,000 lbs | 42 " | 1.87 yd³ | 4 | 2915 lbs | |
|
|
300 | HDP6080E48 | 65,000 - 90,000 lbs | 48 " | 2.220 yd³ | 5 | 3050 lbs |
|
|
300 | HDP6080E54 | 65,000 - 90,000 lbs | 54 " | 2.56 yd³ | 5 | 3407 lbs |
|
|
300 | HDP6080E60 | 65,000 - 90,000 lbs | 60 " | 2.91 yd³ | 6 | 3685 lbs |
| 400 | HDP80100E36 | 90,000 - 115,000 lbs | 36 " | 1.72 yd³ | 4 | 3166 lbs | |
| 400 | HDP80100E42 | 90,000 - 115,000 lbs | 42 " | 2.11 yd³ | 4 | 3382 lbs | |
| 400 | HDP80100E48 | 90,000 - 115,000 lbs | 48 " | 2.5 yd³ | 5 | 3679 lbs | |
| 400 | HDP80100E54 | 90,000 - 115,000 lbs | 54 " | 2.9 yd³ | 5 | 3890 lbs | |
|
|
400 | HDP80100E60 | 90,000 - 115,000 lbs | 60 " | 3.3 yd³ | 6 | 4189 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
