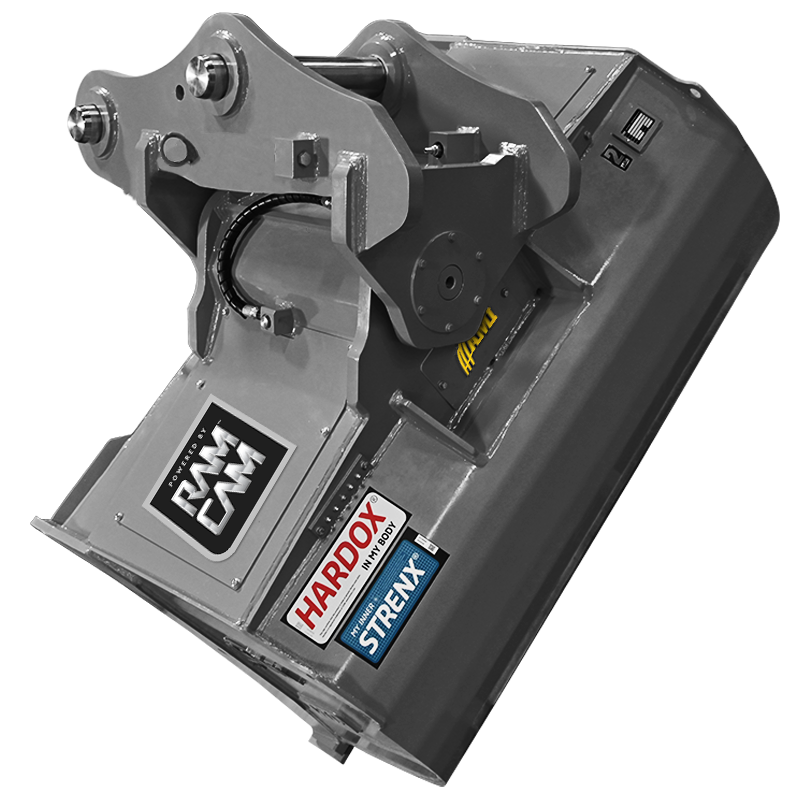

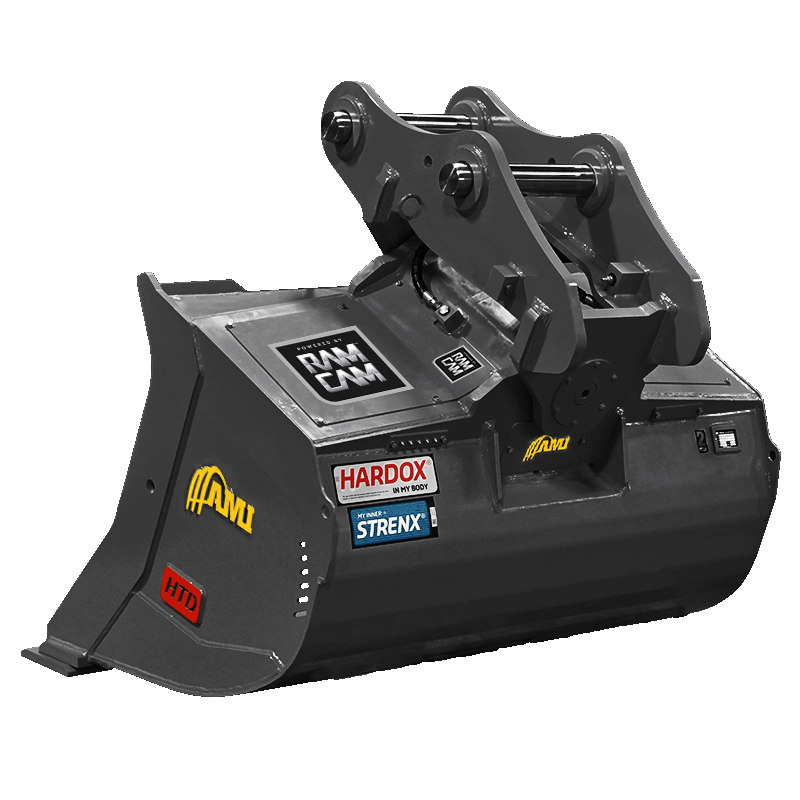

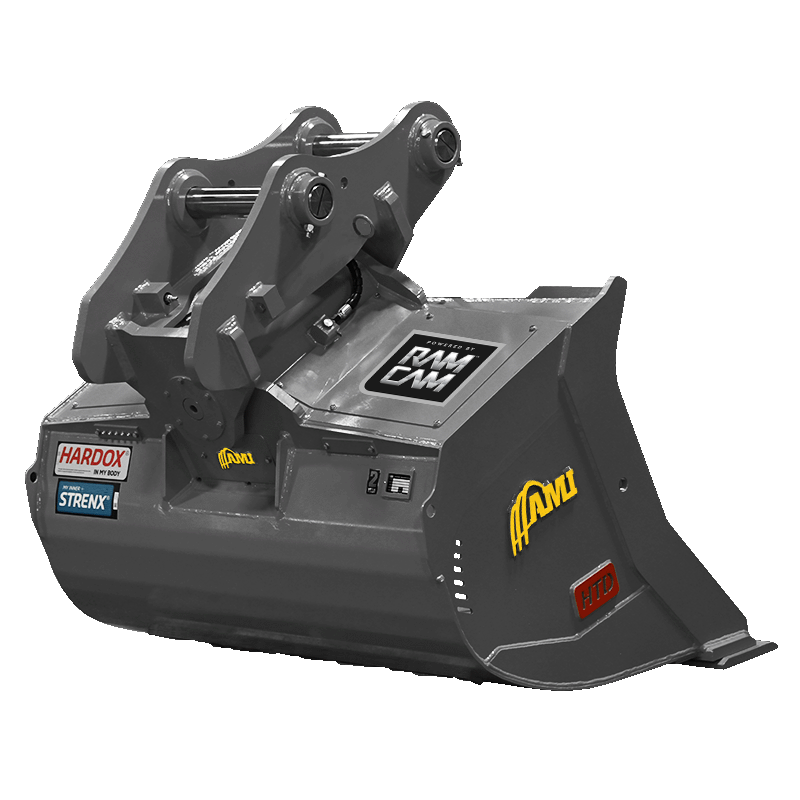

AXXIS® TILT BUCKET Powered by RAMCAM™

AMI Attachment's AXXIS® TB Powered by RAMCAM™ - the ultimate heavy-duty attachment designed to conquer any task with ease. This rugged and powerful tilt bucket is built to last, providing reliability in demanding conditions. Equipped with AXXIS® and RAMCAM™ technology, the hydraulic cylinders are fully protected with minimal hose exposure, reducing damage and downtime. No more broken cylinders from rock obstruction, interference from material build-up, or frozen dirt on bucket's mechanical components. The AXXIS® TB Powered by RAMCAM™ is the first Tilt Bucket that’s got every angle covered. Patent Pending.


RAMCAM™

RAMCAM™ is a revolutionary new drivetrain that allows for mechanical rotation using hydraulic cylinders within a protective casing. Patent Pending.


SPLINED PIN

More than just a pivot point, RAMCAM™ features a splined pin that stays securely in place. As the hydraulic cylinders push against the lobes, the torque is transferred to the splines providing rigidity and strength.


Grease Bank

With all the grease points now protected, the Tilt Bucket powered by RAMCAM™ features a grease bank for simple and routine maintenance.

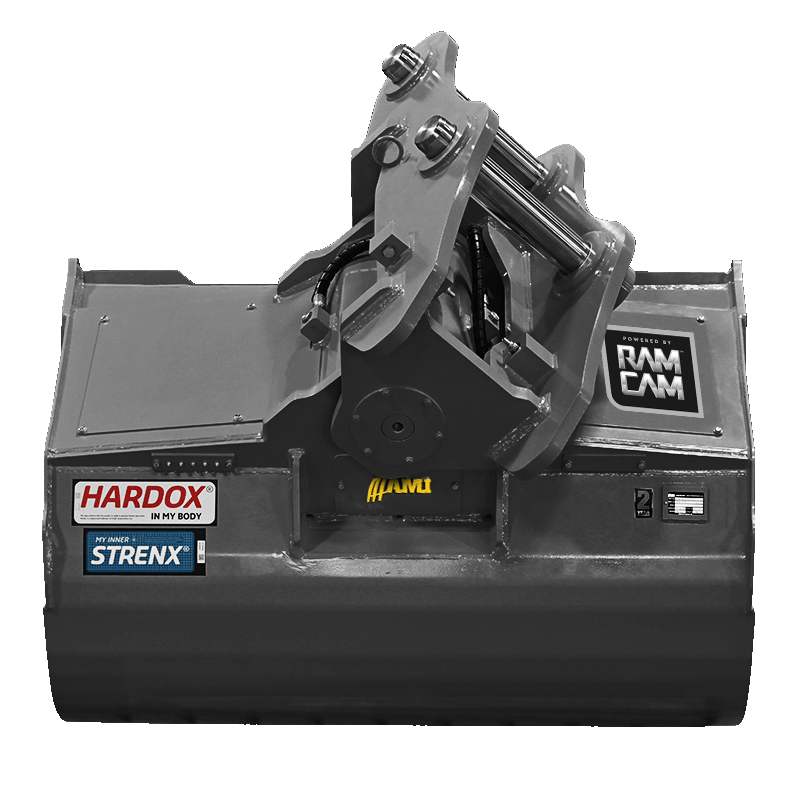

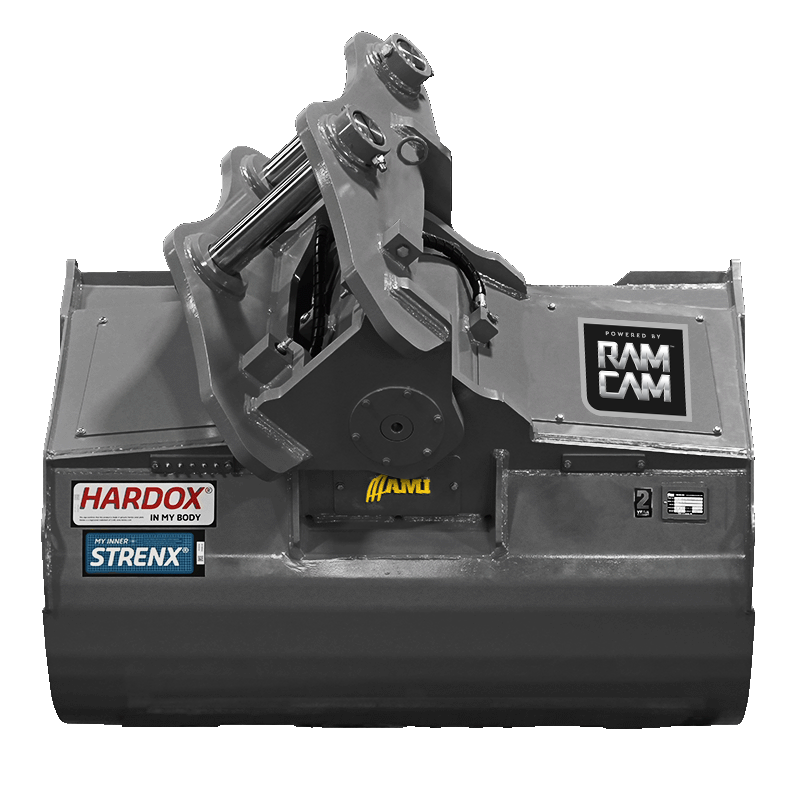

90° Rotation

With 90-degree tilt, the RAMCAM™ drivetrain delivers the same tilt range as AMI Attachments’ conventional tilt bucket.


Tapered Sidewalls

Along with a replaceable bolt-on cutting edge, the bucket includes tapered sidewalls, reducing friction between material and bucket when unloading.


Dual Radius Heel

The heel profile incorporated a dual radius contour, minimizing surface contact while curling.

Specifications - Excavator

FastTrack Category Model Machine Class Width Capacity Weight
130 HTDRC2433E54 24,000 - 33,000 lbs 54 " 0.765 yd³ 1410 lbs
130 HTDRC2433E60 24,000 - 33,000 lbs 60 " 0.860 yd³ 1505 lbs
150 HTDRC3340E54 33,000 - 45,000 lbs 54 " 0.688 yd³ 1690 lbs
150 HTDRC3340E60 33,000 - 45,000 lbs 60 " 0.750 yd³ 1790 lbs
200 HTDRC4045E60 45,000 - 55,000 lbs 60 " 1.095 yd³ 2445 lbs
200 HTDRC4045E66 45,000 - 55,000 lbs 66 " 1.220 yd³ 2570 lbs
200 HTDRC4045E72 45,000 - 55,000 lbs 72 " 1.345 yd³ 2710 lbs
250 HTDRC4560E60 55,000 - 65,000 lbs 60 " 1.413 yd³ 2975 lbs
250 HTDRC4560E66 55,000 - 65,000 lbs 66 " 1.575 yd³ 3090 lbs
250 HTDRC4560E72 55,000 - 65,000 lbs 72 " 1.735 yd³ 3340 lbs
300 HTDRC6080E66 65,000 - 90,000 lbs 66 " 1.825 yd³ 4075 lbs
300 HTDRC6080E72 65,000 - 90,000 lbs 72 " 2.015 yd³ 4430 lbs
300 HTDRC6080E84 65,000 - 90,000 lbs 84 " 2.390 yd³ 4880 lbs
400 HTDRC80100E78 90,000 - 115,000 lbs 78 " 2.660 yd³ 5935 lbs
400 HTDRC80100E84 90,000 - 115,000 lbs 84 " 2.880 yd³ 6170 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
