Rotating Mat Grapple

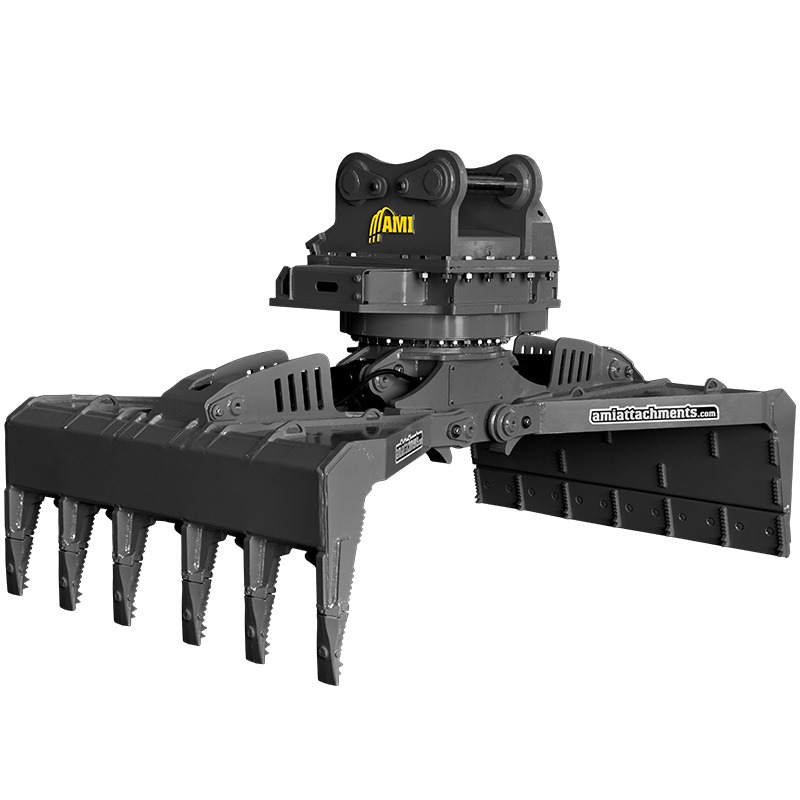

The AMI Rotating Mat Grapple is the perfect tool for placing wooden mats over wet or environmentally sensitive land, giving easy access for heavy equipment to the construction site. Full proportional control of both the clamps and rotator means one operator can lift, tilt, spin, unload and position mats – up to five at a time - with exceptional accuracy and efficiency. The custom joystick delivers fingertip precision while the clamp and rotator move simultaneously in a 360 degree rotation and is available using only one auxiliary hammer circuit. This excavator attachment is available for excavators, log forwarders and logging trucks as well as wheel loaders and skidsteers.

Specifications - Excavator

FastTrack Category Model Machine Class Description
130 GR2433MGJ 24,000 - 33,000 lbs 4 Tine Jaw With Replaceable Teeth 48.5'' Jaw Width 102'' Jaw-Open
150 GR3340MGJ 33,000 - 45,000 lbs 5 Tine Jaw With Replaceable Teeth 54.5'' Jaw Width 102'' Jaw Open
200 GR4045MGJ 45,000 - 55,000 lbs 5 Tine Jaw With Replaceable Teeth 54.5'' Jaw Width 102'' Jaw Open
250 GR4560MGJ 55,000 - 65,000 lbs 6 Tine Jaw With Replaceable Teeth 72.5'' Jaw Width 109'' Jaw Open
300 GR6080MGJ 65,000 - 90,000 lbs 6 Tine Jaw With Replaceable Teeth 72.5'' Jaw Width 109'' Jaw Open

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
