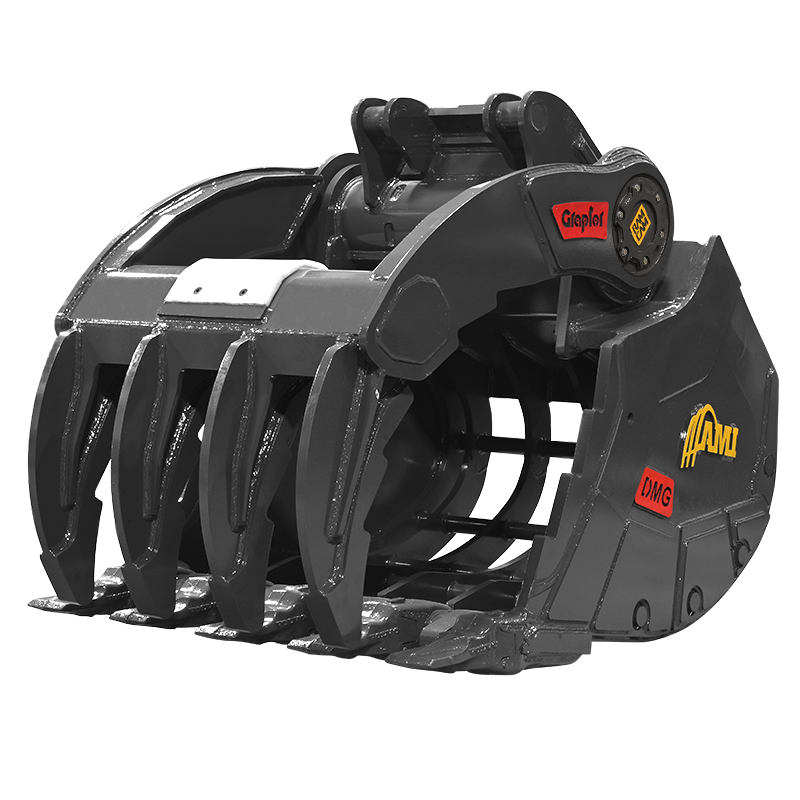

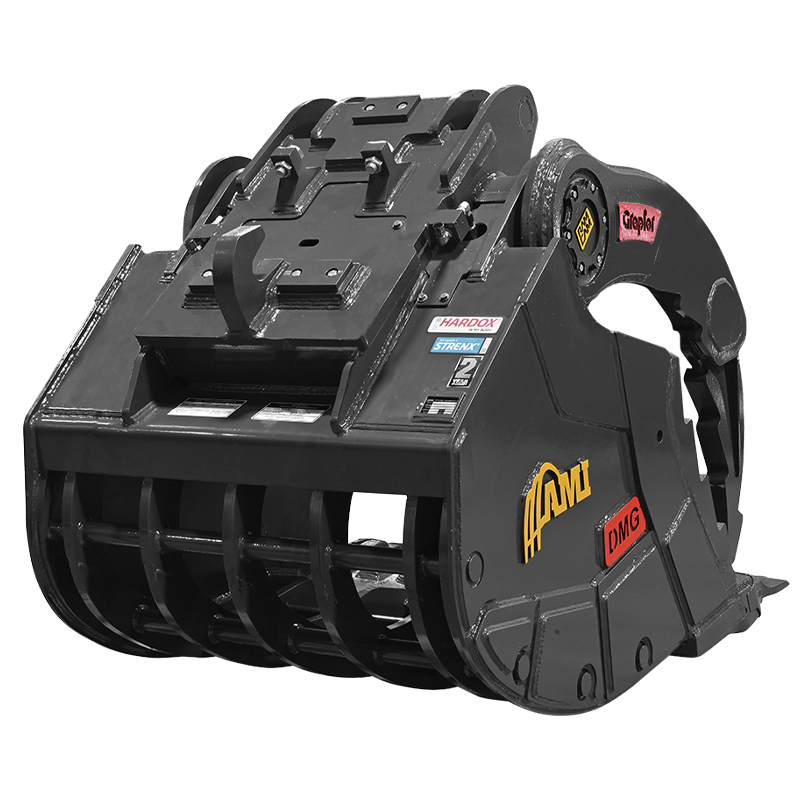

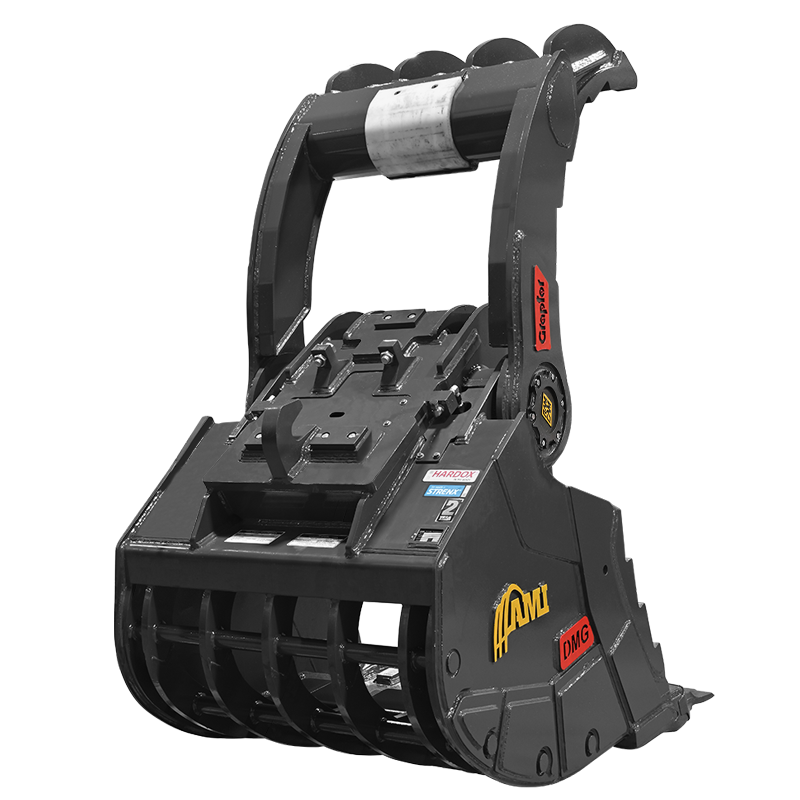

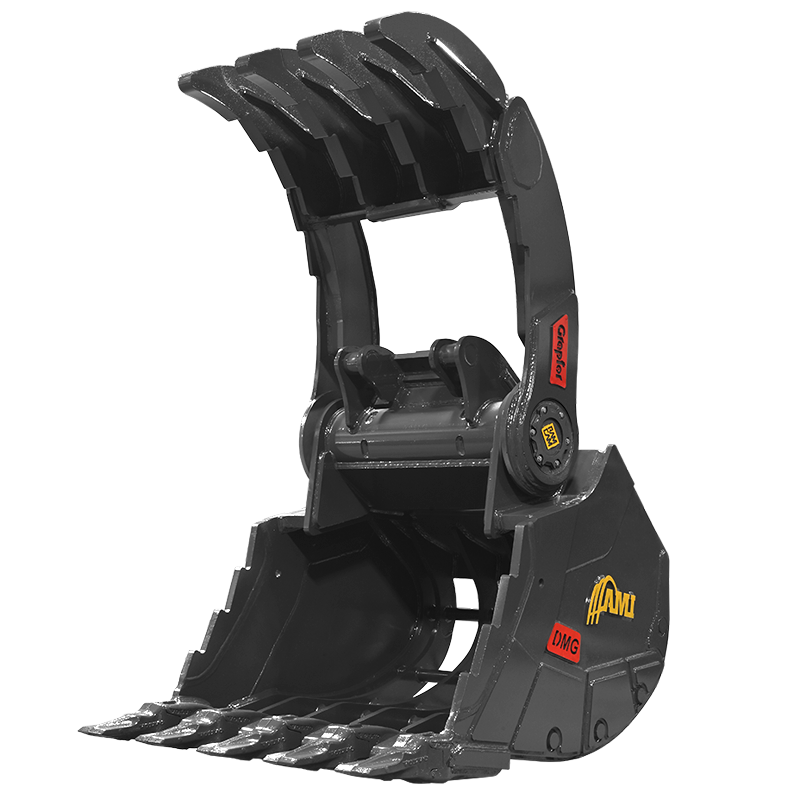

Graptor® Screening Bucket Powered by RAMCAM™


RAMCAM™ Technology

RAMCAM™ is a revolutionary new drivetrain that allows for mechanical rotation using hydraulic cylinders enclosed within a protective casing. Patent Pending.


Fully Enclosed Hydraulic Cylinders

Ingeniously designed, the RAMCAM™ drivetrain efficiently transfers energy from standard hydraulic cylinders, through a splined camshaft and into the Graptor® thumb for a tight grip on every load. And with RAMCAM™ completely enclosed, all components are fully protected at all times.


Constant Grip

Confidently handle heavy, awkward loads with the superior grip of the Graptor® Bucket Powered by RAMCAM™. For demolition work, the Graptor® strongly grips the load and holds it securely throughout the full rotation of the bucket, all the way to roll out.


Maximized Gripping Strength

With the increased force at mid-stroke of the hydraulic cylinders, RAMCAM™ provides more grip of heavy objects.


Increased Crushing Force

Providing greater torque, RAMCAM™ delivers up to 84% more crushing force than the previous Graptor®, for more ripping, biting and demolishing that's reliable and durable.


Grease Bank

With all the grease points now protected, the Graptor® powered by RAMCAM™ features a grease bank for simple and routine maintenance.

Specifications - Excavator

FastTrack Category Model Machine Class Width Capacity Teeth Weight
150 DMRSGR3340E30 33,000 - 45,000 lbs 30 " 0.530 yd³ 4 WOR
150 DMRSGR3340E36 33,000 - 45,000 lbs 35 " 0.815 yd³ 5 WOR
150 DMRSGR3340E42 33,000 - 45,000 lbs 42 " 0.975 yd³ 5 WOR
200 DMRSGR4045E42 45,000 - 55,000 lbs 42 " 1.060 yd³ 5 WOR
200 DMRSGR4045E48 45,000 - 55,000 lbs 48 " 1.235 yd³ 5 WOR
250 DMRSGR4560E36 55,000 - 65,000 lbs 36 " 0.985 yd³ 4 WOR
250 DMRSGR4560E42 55,000 - 65,000 lbs 42 " 1.190 yd³ 5 WOR
250 DMRSGR4560E48 55,000 - 65,000 lbs 48 " 1.375 yd³ 5 WOR
250 DMRSGR4560E54 55,000 - 65,000 lbs 54 " 1.575 yd³ 5 WOR
300 DMRSGR6080E48 65,000 - 90,000 lbs 48 " 1.855 yd³ 5 WOR
300 DMRSGR6080E54 65,000 - 90,000 lbs 54 " 2.125 yd³ 5 WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
