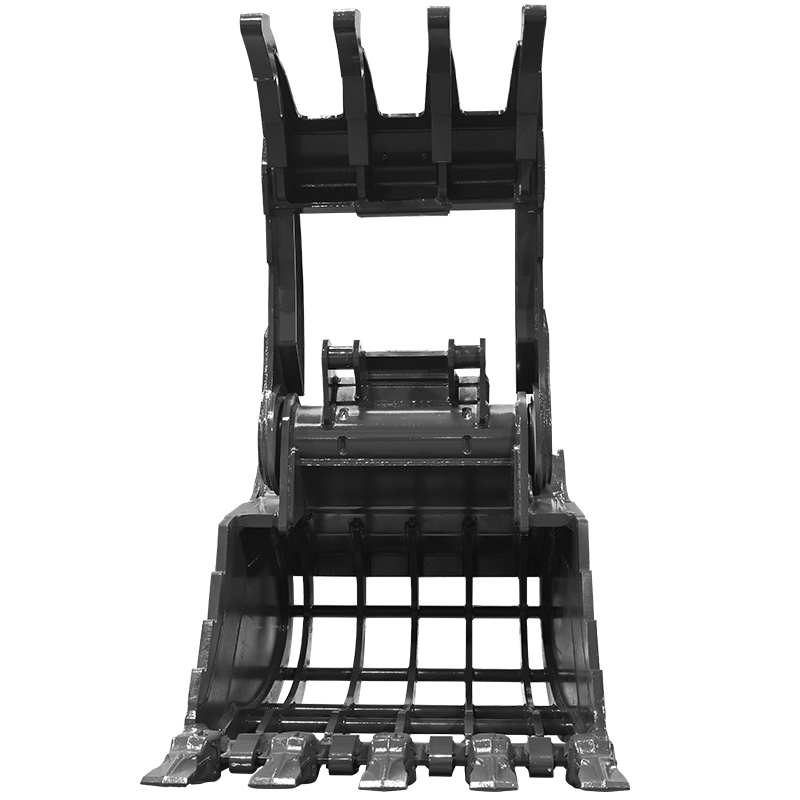

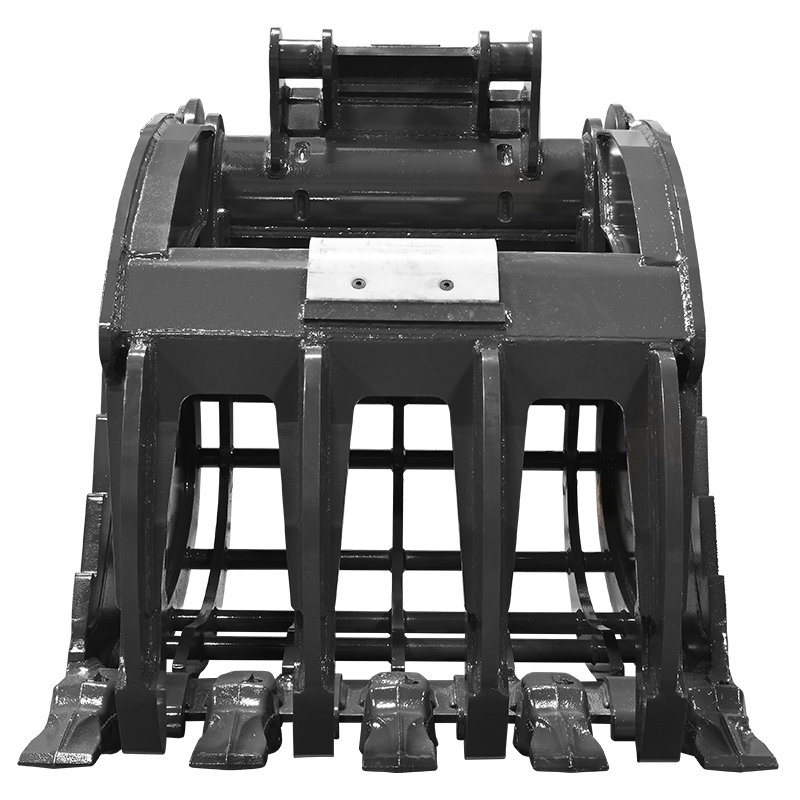

Graptor® Screening Bucket Powered by RAMCAM™
RAMCAM™ Technology
RAMCAM™ is a revolutionary new drivetrain that allows for mechanical rotation using hydraulic cylinders enclosed within a protective casing. Patent Pending.
Fully Enclosed Hydraulic Cylinders
Ingeniously designed, the RAMCAM™ drivetrain efficiently transfers energy from standard hydraulic cylinders, through a splined camshaft and into the Graptor® thumb for a tight grip on every load. And with RAMCAM™ completely enclosed, all components are fully protected at all times.
Constant Grip
Confidently handle heavy, awkward loads with the superior grip of the Graptor® Bucket Powered by RAMCAM™. For demolition work, the Graptor® strongly grips the load and holds it securely throughout the full rotation of the bucket, all the way to roll out.
Maximized Gripping Strength
With the increased force at mid-stroke of the hydraulic cylinders, RAMCAM™ provides more grip of heavy objects.
Increased Crushing Force
Providing greater torque, RAMCAM™ delivers up to 84% more crushing force than the previous Graptor®, for more ripping, biting and demolishing that's reliable and durable.
Grease Bank
With all the grease points now protected, the Graptor® powered by RAMCAM™ features a grease bank for simple and routine maintenance.
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 150 | RCSGR3340E30 | 33,000 - 45,000 lbs | 30 " | 0.530 yd³ | 4 | WOR | |
| 150 | RCSGR3340E36 | 33,000 - 45,000 lbs | 36 " | 0.815 yd³ | 5 | WOR | |
| 150 | RCSGR3340E42 | 33,000 - 45,000 lbs | 42 " | 0.975 yd³ | 5 | WOR | |
| 200 | RCSGR4045E42 | 45,000 - 55,000 lbs | 42 " | 1.060 yd³ | 5 | WOR | |
| 200 | RCSGR4045E48 | 45,000 - 55,000 lbs | 48 " | 1.235 yd³ | 5 | WOR | |
| 250 | RCSGR4560E36 | 55,000 - 65,000 lbs | 36 " | 0.985 yd³ | 4 | WOR | |
| 250 | RCSGR4560E42 | 55,000 - 65,000 lbs | 42 " | 1.190 yd³ | 5 | WOR | |
| 250 | RCSGR4560E48 | 55,000 - 65,000 lbs | 48 " | 1.375 yd³ | 5 | WOR | |
| 250 | RCSGR4560E54 | 55,000 - 65,000 lbs | 54 " | 1.575 yd³ | 5 | WOR | |
| 300 | RCSGR6080E48 | 65,000 - 90,000 lbs | 48 " | 1.855 yd³ | 5 | WOR | |
| 300 | RCSGR6080E54 | 65,000 - 90,000 lbs | 54 " | 2.125 yd³ | 5 | WOR |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
