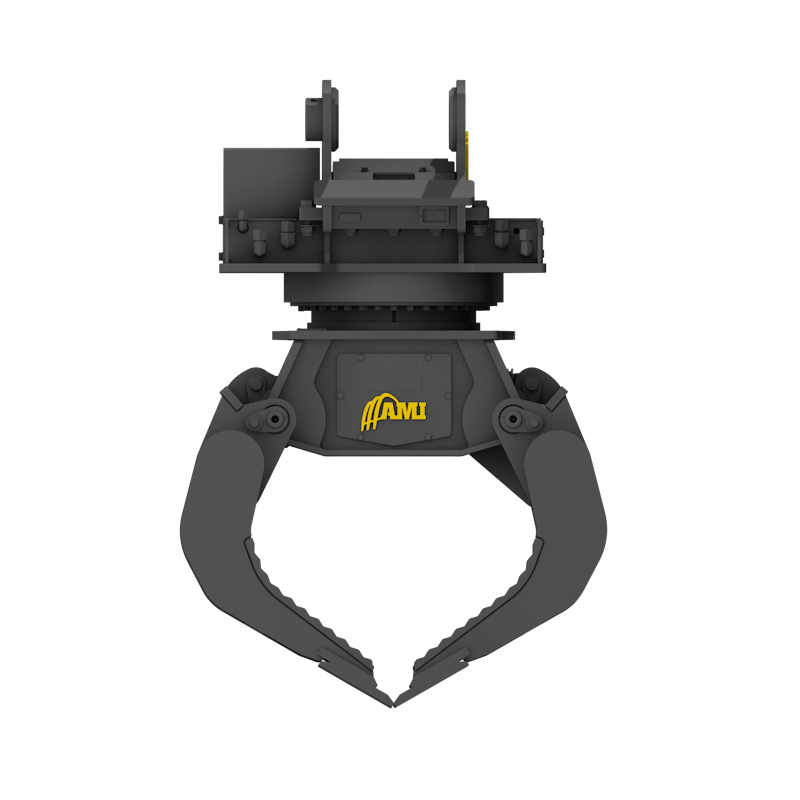

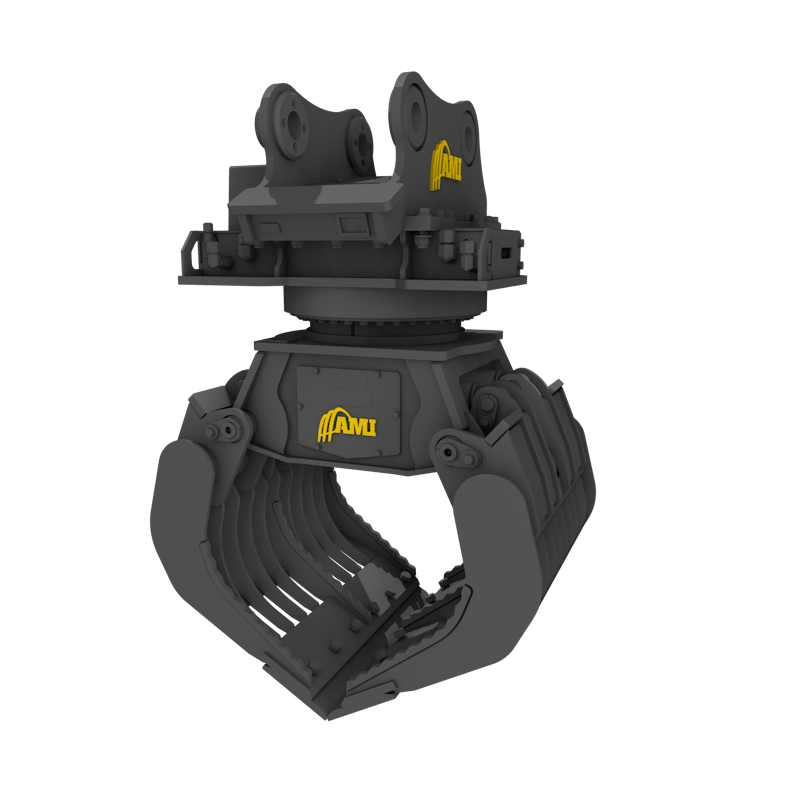

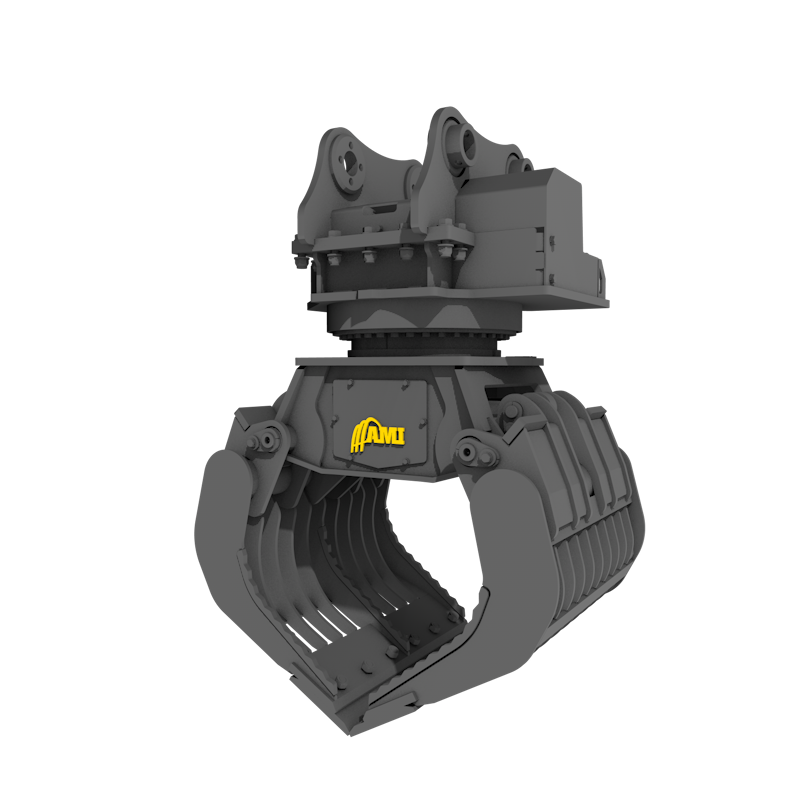

Demolition & Sorting Grapple
High performance strength meets cutting-edge agility with AMI Attachments’ Extractor - the versatile demolition and sorting grapple capable of taking down buildings, moving large volumes of material, and picking through fine recyclables. Built for strenuous work, the Extractor is made with Hardox Wear Plates and Strenx steel and moves higher volumes of material using less fuel - cycle after cycle. The Extractor rotates 360 degrees and features flexible jaw operation with edge-to-edge contact, reversible cutting edges, and zero clearance design for maximum productivity.
Edge-to-Edge Contact
The Extractor’s precision edge-to-edge contact makes selecting thin and valuable items incredibly easy.
360° Rotation (Optional)
For exceptional performance and total operator control, the Extractor rotates 360 degrees to position the grapple accurately and move loads quickly.
Hardox Wear Plate
High-wear serrated edges and mounting edges are made with Hardox Wear Plate, an abrasion-resistant steel that can repeatedly withstand the Extractor’s rigorous work.
Vertical Tines
With the Extractor’s zero clearance jaw design, operators can easily retrieve objects tightly positioned against walls and bins with its perfectly vertical jaw opening.
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Jaw Width | Weight | Description |
|---|---|---|---|---|---|---|
| 35 | GR0610SGJF | 6,000 - 10,000 lbs. | 27.5 " | 1050 lbs | - | |
| 50 | GR1012SGJF | 10,000 - 12,000 lbs | 27.5 " | 1100 lbs | - | |
| 60 | GR1214SGJF | 12,000 - 14,000 lbs | 30 " | 1260 lbs | - | |
| 75 | GR1416SGJF | 14,000 - 24,000 lbs | 30 " | 1260 lbs | - |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
| FastTrack | Category | Model | Machine Class | Jaw Width | Jaw Opening | Weight |
|---|---|---|---|---|---|---|
| 130 | GR2433SGJF | 24,000 - 33,000 lbs | 32 " | 72 " | 1800 lbs | |
| 150 | GR3340SGJF | 33,000 - 45,000 lbs | 32 " | 72 " | 2300 lbs | |
| 200 | GR4045SGJF | 45,000 - 55,000 lbs | 30 " | 80 " | 2900 lbs | |
| 250 | GR4560SGJF | 55,000 - 65,000 lbs | 88 " | 41.5 " | 4600 lbs | |
| 300 | GR6080SGJF | 65,000 - 90,000 lbs | 60 " | 94 " | 4800 lbs | |
| 400 | GR80100SGJF | 90,000 - 115,000 lbs | 60 " | 94 " | 4800 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
