Letsdig18 Stick Pivot Hydraulic Thumb

The Custom Edition LETSDIG18 - Hydraulic Stick Pivot Thumb provides great functionality to your compact excavator. Stick Pivot means the thumb rotates on the same pivot point as the original bucket pin, not a secondary weld-on pivot point. The hydraulic cylinder is also directly connected to the thumb, covering 65-75% bucket rotation. Since both the thumb and the bucket rotate on the same axis, the thumb tip and bucket teeth maintain constant grip on the load when rotating. Unlike thumbs that use a secondary weld-on pivot point, the LETSDIG18 Custom Edition Stick Pivot eliminates scraping and slippage and reduces risk of release during rotation. The LETSDIG18 Hydraulic Stick Pivot Thumb also exclusively features Hardox® tines positioned between each tooth.

Product Features

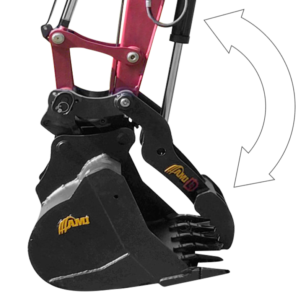

Bucket Pin Rotation Point

The hydraulic cylinder is also directly connected to the thumb, covering 65-75% bucket rotation. Since both the thumb and the bucket rotate on the same axis, the thumb tip and bucket teeth maintain constant grip on the load when rotating.

Spherical Bushings

The hydraulic cylinder’s seals stay intact by allowing the thumb to naturally flex when handling awkward material without adding torsional stress to the seals.

Cushioning Cylinder

By restricting the flow of hydraulic oil at the end of the cylinder stroke, AMI thumbs retract smoothly without a hard stop. This reduces the wear and tear on the excavator and prevents machine shake, making it more comfortable for the operator.

SPECIFICATIONS - COMPACT EXCAVATOR

Category	Model	Machine Class	Tines	Weight	Width
35	TH0610LD18HSP2T11	6,000 - 10,000 lbs.	2	159 lbs	11 "
35	TH0610LD18HSP2T12.875	6,000 - 10,000 lbs.	2	160 lbs	12.875 "
35	TH0610LD18HSP2T15	6,000 - 10,000 lbs.	2	160 lbs	15 "
35	TH0610LD18HSP2T17.5	6,000 - 10,000 lbs.	2	159 lbs	17.5 "
35	TH0610LD18HSP2T22	6,000 - 10,000 lbs.	2	159 lbs	22 "
35	TH0610LD18HSP2T26	6,000 - 10,000 lbs.	2	160 lbs	26 "
35	TH0610LD18HSP2T28	6,000 - 10,000 lbs.	2	159 lbs	28 "
35	TH0610LD18HSP2T7	6,000 - 10,000 lbs.	2	160 lbs	7 "
35	TH0610LD18HSP3T11	6,000 - 10,000 lbs.	3	164 lbs	11 "
35	TH0610LD18HSP3T12.875	6,000 - 10,000 lbs.	3	165 lbs	12.875 "
35	TH0610LD18HSP3T15	6,000 - 10,000 lbs.	3	164 lbs	15 "
35	TH0610LD18HSP3T17.5	6,000 - 10,000 lbs.	3	165 lbs	17.5 "
35	TH0610LD18HSP3T22	6,000 - 10,000 lbs.	3	165 lbs	22 "
35	TH0610LD18HSP4T12.875	6,000 - 10,000 lbs.	4	170 lbs	26 "
35	TH0610LD18HSP4T15	6,000 - 10,000 lbs.	4	170 lbs	15 "
35	TH0610LD18HSP4T17.5	6,000 - 10,000 lbs.	4	170 lbs	17.5 "
35	TH0610LD18HSP4T22	6,000 - 10,000 lbs.	4	170 lbs	22 "
35	TH0610LD18HSP4T26	6,000 - 10,000 lbs.	4	169 lbs	26 "
35	TH0610LD18HSP5T28	6,000 - 10,000 lbs.	5	175 lbs	28 "
50	TH1012LD18HSP2T11	10,000 - 12,000 lbs	2	225 lbs	11 "
50	TH1012LD18HSP2T13.75	10,000 - 12,000 lbs	2	225 lbs	13.75 "
50	TH1012LD18HSP2T15	10,000 - 12,000 lbs	2	224 lbs	15 "
50	TH1012LD18HSP2T18	10,000 - 12,000 lbs	2	225 lbs	18 "
50	TH1012LD18HSP2T22	10,000 - 12,000 lbs	2	225 lbs	22 "
50	TH1012LD18HSP2T26	10,000 - 12,000 lbs	2	225 lbs	22 "
50	TH1012LD18HSP2T28	10,000 - 12,000 lbs	2	225 lbs	28 "
50	TH1012LD18HSP2T6.5	10,000 - 12,000 lbs	2	225 lbs	6.5 "
50	TH1012LD18HSP3T11	10,000 - 12,000 lbs	3	230 lbs	11 "
50	TH1012LD18HSP3T13.75	10,000 - 12,000 lbs	3	238 lbs	13.75 "
50	TH1012LD18HSP3T15	10,000 - 12,000 lbs	3	230 lbs	15 "
50	TH1012LD18HSP3T17.5	10,000 - 12,000 lbs	3	230 lbs	17.5 "
50	TH1012LD18HSP3T22	10,000 - 12,000 lbs	3	230 lbs	22 "
50	TH1012LD18HSP4T13.75	10,000 - 12,000 lbs	4	238 lbs	13.75 "
50	TH1012LD18HSP4T15	10,000 - 12,000 lbs	4	238 lbs	15 "
50	TH1012LD18HSP4T18	10,000 - 12,000 lbs	4	245 lbs	18 "
50	TH1012LD18HSP4T22	10,000 - 12,000 lbs	4	238 lbs	22 "
50	TH1012LD18HSP4T26	10,000 - 12,000 lbs	4	238 lbs	25 "
50	TH1012LD18HSP4T28	10,000 - 12,000 lbs	5	245 lbs	28 "
60	TH1214LD18HSP2T12	12,000 - 14,000 lbs	2	240 lbs	12 "
60	TH1214LD18HSP2T13.75	12,000 - 14,000 lbs	2	240 lbs	13.75 "
60	TH1214LD18HSP2T18	12,000 - 14,000 lbs	2	240 lbs	18 "
60	TH1214LD18HSP2T22	12,000 - 14,000 lbs	2	240 lbs	22 "
60	TH1214LD18HSP2T26	12,000 - 14,000 lbs	2	240 lbs	26 "
60	TH1214LD18HSP2T7.5	12,000 - 14,000 lbs	2	240 lbs	7.5 "
60	TH1214LD18HSP2T9.5	12,000 - 14,000 lbs	2	240 lbs	9.5 "
60	TH1214LD18HSP3T12	12,000 - 14,000 lbs	3	250 lbs	12 "
60	TH1214LD18HSP3T13.75	12,000 - 14,000 lbs	3	250 lbs	13.75 "
60	TH1214LD18HSP3T9.5	12,000 - 14,000 lbs	3	250 lbs	9.5 "
60	TH1214LD18HSP4T13.75	12,000 - 14,000 lbs	4	260 lbs	13.75 "
60	TH1214LD18HSP4T18	12,000 - 14,000 lbs	4	260 lbs	18 "
60	TH1214LD18HSP4T22	12,000 - 14,000 lbs	4	260 lbs	22 "
60	TH1214LD18HSP4T26	12,000 - 14,000 lbs	4	260 lbs	26 "
60	TH1214LD18HSP5T28	12,000 - 14,000 lbs	5	270 lbs	28 "
75	TH1416LD18HSP2T12	14,000 - 24,000 lbs	2	420 lbs	12 "
75	TH1416LD18HSP2T16	14,000 - 24,000 lbs	2	420 lbs	16 "
75	TH1416LD18HSP2T18	14,000 - 24,000 lbs	2	420 lbs	18 "
75	TH1416LD18HSP2T19	14,000 - 24,000 lbs	19	420 lbs	19 "
75	TH1416LD18HSP2T22	14,000 - 24,000 lbs	2	420 lbs	22 "
75	TH1416LD18HSP2T26	14,000 - 24,000 lbs	2	420 lbs	26 "
75	TH1416LD18HSP2T9	14,000 - 24,000 lbs	2	420 lbs	9 "
75	TH1416LD18HSP3T12	14,000 - 24,000 lbs	3	435 lbs	12 "
75	TH1416LD18HSP3T16	14,000 - 24,000 lbs	3	435 lbs	16 "
75	TH1416LD18HSP3T18	14,000 - 24,000 lbs	3	435 lbs	18 "
75	TH1416LD18HSP3T22	14,000 - 24,000 lbs	3	435 lbs	22 "
75	TH1416LD18HSP4T16	14,000 - 24,000 lbs	4	450 lbs	16 "
75	TH1416LD18HSP4T18	14,000 - 24,000 lbs	4	450 lbs	18 "
75	TH1416LD18HSP4T22	14,000 - 24,000 lbs	4	450 lbs	22 "
75	TH1416LD18HSP4T26	14,000 - 24,000 lbs	4	450 lbs	26 "
75	TH1416LD18HSP5T28	14,000 - 24,000 lbs	5	465 lbs	28 "

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
