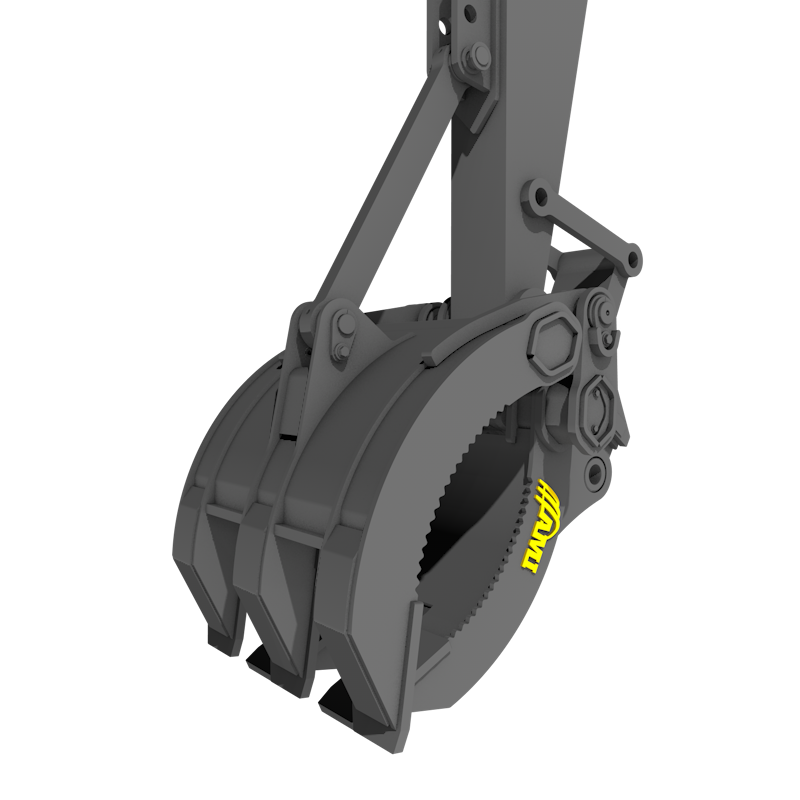

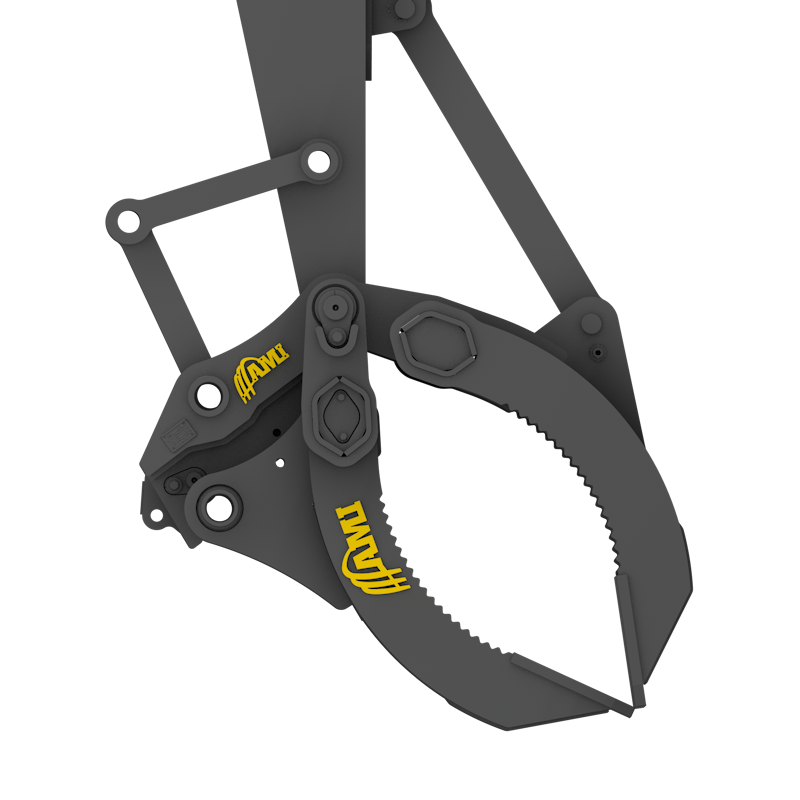

Demolition Grapple

Grab hold with the powerful grip and crushing strength of the AMI Demolition Grapple. The low-wear, high-tensile gripping pads on the bypassing tines easily crush and load garbage and construction debris.

Specifications - Excavator

Category	Model	Machine Class	Description	Weight
130	GR2433DM23	24,000 - 33,000 lbs	2 Over 3 Tine	1550 lbs
130	GR2433DM34	24,000 - 33,000 lbs	3 Over 4 Tine	1700 lbs
150	GR3340DM23	33,000 - 45,000 lbs	2 Over 3 Tine	2200 lbs
150	GR3340DM34	33,000 - 45,000 lbs	3 Over 4 Tine	2400 lbs
200	GR4045DM23	45,000 - 55,000 lbs	2 Over 3 Tine	2900 lbs
200	GR4045DM34	45,000 - 55,000 lbs	3 Over 4 Tine	3450 lbs
250	GR4560DM23	55,000 - 65,000 lbs	2 Over 3 Tine	3950 lbs
250	GR4560DM34	55,000 - 65,000 lbs	3 Over 4 Tine	4150 lbs
300	GR6080DM23	65,000 - 90,000 lbs	2 Over 3 Tine	4700 lbs
300	GR6080DM34	65,000 - 90,000 lbs	3 Over 4 Tine	5080 lbs
300	GR6080DM45	65,000 - 90,000 lbs	4 Over 5 Tine	5480 lbs
400	GR80100DM23	90,000 - 115,000 lbs	2 Over 3 Tine	5850 lbs
400	GR80100DM34	90,000 - 115,000 lbs	3 Over 4 Tine	6600 lbs
650	GR120140DM23	120,000 - 140,000 lbs.	2 Over 3	WOR
650	GR120140DM34	120,000 - 140,000 lbs.	3 Over 4	WOR
650	GR120140DM45	120,000 - 140,000 lbs.	4 Over 5	WOR
750	GR140160DM23	140,000 - 160,000 lbs.	2 Over 3 Tine	WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
