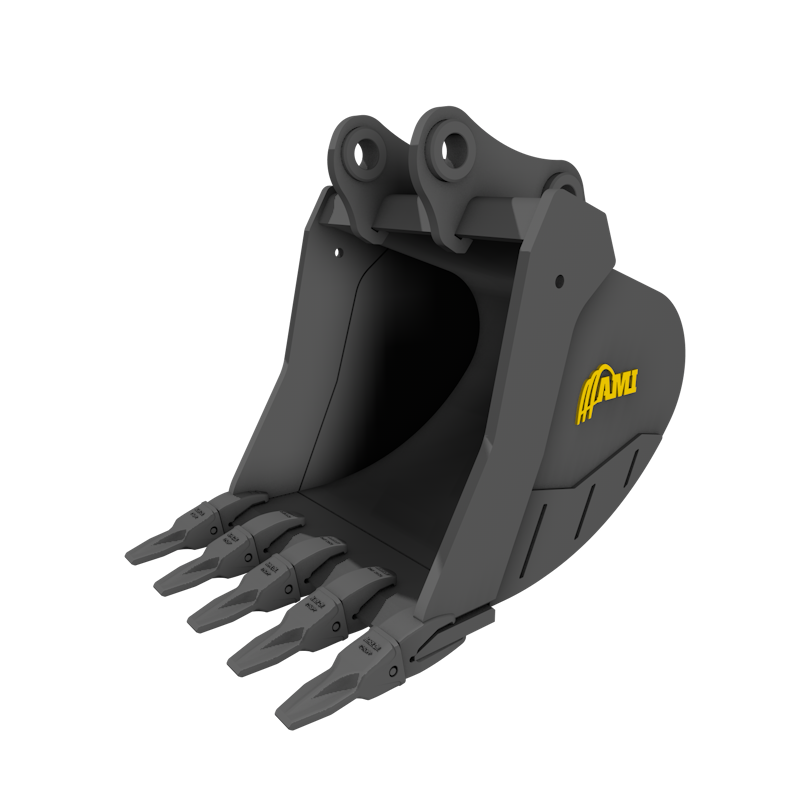

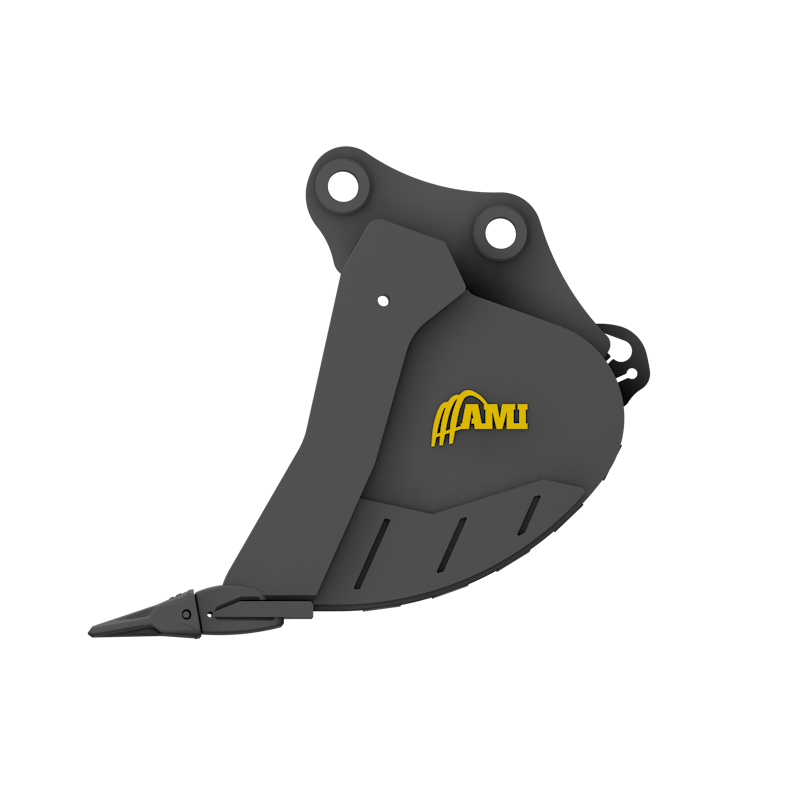

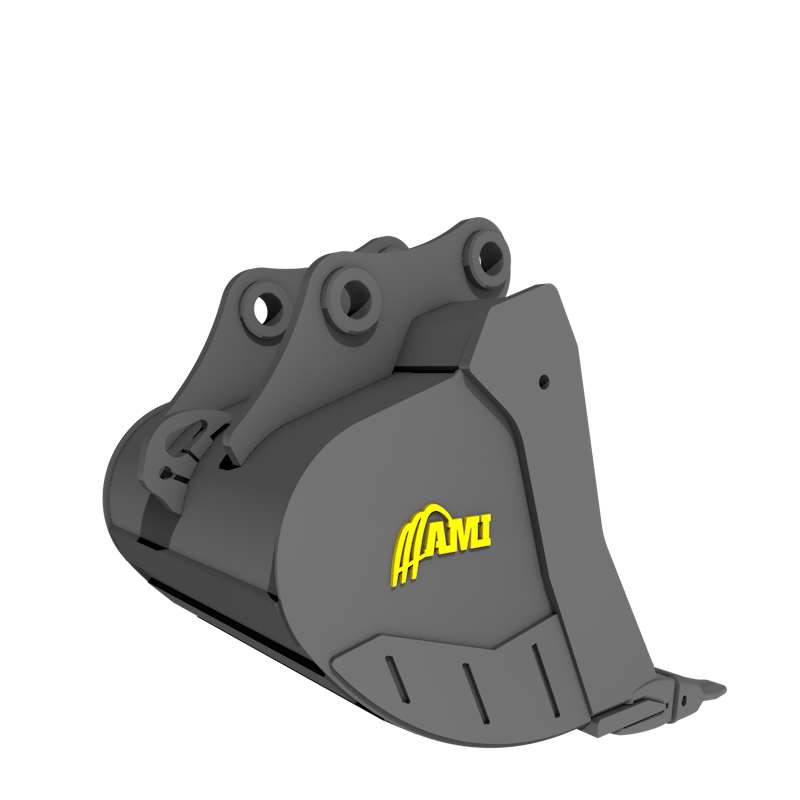

Severe Duty Bucket

With thicker AR400 wear steel in all wear areas including base edge, side cutter plates, larger cheek plates, and horizontal wear bars, the Severe Duty Bucket is built for higher abrasion conditions. Featuring a standard dual radius profile on the floor and heel of bucket for maximum wear and performance. Various ground engaging hardware available.

Specifications - Compact Excavator

FastTrack Category Model Machine Class Width Capacity Teeth Weight
60 SD1214E12 12,000 - 14,000 lbs 12 " 3.750 ft³ 3 365 lbs
60 SD1214E16 12,000 - 14,000 lbs 16 " 5.250 ft³ 4 400 lbs
60 SD1214E18 12,000 - 14,000 lbs 18 " 6.000 ft³ 4 420 lbs
60 SD1214E20 12,000 - 14,000 lbs 20 " 6.625 ft³ 4 435 lbs
60 SD1214E24 12,000 - 14,000 lbs 24 " 8.250 ft³ 5 470 lbs
60 SD1214E30 12,000 - 14,000 lbs 30 " 10.625 ft³ 5 520 lbs
60 SD1214E36 12,000 - 14,000 lbs 36 " 13.000 ft³ 6 575 lbs
75 SD1416E12 14,000 - 24,000 lbs 12 " 3.780 ft³ 3 460 lbs
75 SD1416E16 14,000 - 24,000 lbs 16 " 4.185 ft³ 4 505 lbs
75 SD1416E18 14,000 - 24,000 lbs 18 " 5.805 ft³ 4 525 lbs
75 SD1416E20 14,000 - 24,000 lbs 20 " 6.885 ft³ 4 550 lbs
75 SD1416E24 14,000 - 24,000 lbs 24 " 8.370 ft³ 4 590 lbs
75 SD1416E30 14,000 - 24,000 lbs 30 " 11.070 ft³ 5 645 lbs
75 SD1416E36 14,000 - 24,000 lbs 36 " 13.770 ft³ 5 715 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
